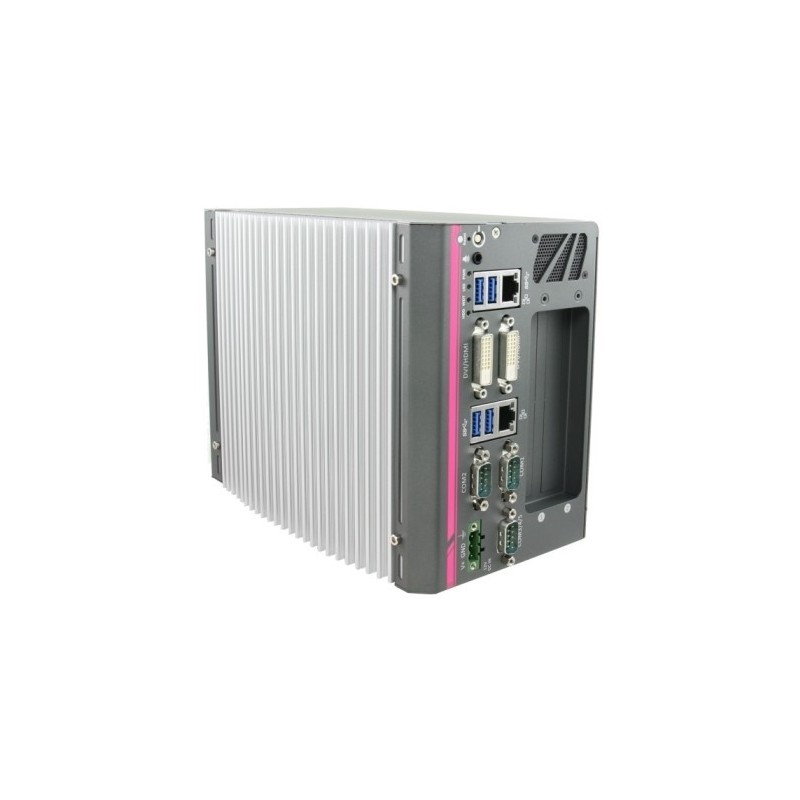

PC Shoebox Fanless Nuvo-6002

BBNENUVO-6002

Neousys

PC Fanless, 6th-Gen Intel® Core™ i7/i5/i3, 2x Exp. Slots, H110 Chip.,
1xPCIeX16, 1xPCIeX8, 2x GbE Intel I210/I219, 1xSod. DDR4 16GB Max,
1xSATA 2.5", mSATA, 4xUSB 3.0, 2xCOM ports + 2x3-wire RS-232, 2xDVI-D,
8~35Vdc 3PIN, Op.Temp: -25~60°C. no PSU.
Envoyer à un ami
Ce PC Shoebox évolutif grâce à ses nombreux slots d'extension, non ventilé et durci, supporte les processeurs Intel® Core de 6ème génération (skylake) pour une plus grande puissance de calcul.

- 6-Gen Intel® Core ™ i7 / i5 / i3, Pentium et Celeron CPU LGA1151
- Jusqu'à deux slots d'extension : 1 PCIe x16 et 1 PCIe x8
- Températures de fonctionnement de -25 ° à 60 °
- 2 ports GbE, 4x USB 3.0 et 5x COM
- 2 sorties DVI-D
- 3x 2.5 "SATA et 1x mSATA
- Montage mural, montage sur rail DIN et montage en rack disponible
- Détection automatique de la température et de contrôle du ventilateur (en option)
Processor Supports 6th-Gen Intel® Core™, Pentium® and Celeron® LGA1151 CPU
Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset Intel® H110 Platform Controller Hub
Graphics Integrated Intel® HD 530/510 Controller
Memory Up to 16 GB DDR4-2133 by one SODIMM socket
I/O Interface
Ethernet Port 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Video Port 2x DVI-D connectors for DVI/HDMI outputs,
supporting 1920x1200 resolution
Serial Port 2x Software-programmable RS-232/422/485 ports
3x 3-wire RS-232 ports
USB 4x USB 3.0 ports
Audio 1x Speaker-out
Expansion Bus
PCI Express 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals
1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals
PCI 3x 33MHz/32-bit PCI slots(only for Nuvo-6032)
Storage Interface
SATA 3x SATA ports for 2.5" HDD/SSD installation
(Nuvo-6032)
1x SATA port for 2.5" HDD/SSD installation
(Nuvo-6002)
mSATA 1x full-size mSATA socket
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35 VDC input
Mechanical
Dimension 184 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6032)
124 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6002)
Weight 3.5 Kg (Nuvo-6032)
2.8 Kg (Nuvo-6002)
Mounting Wall-mounting (standard)
DIN-Rail mounting (optional)
rack-mounting (optional)
Environmental
Operating Temperature -25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024

* The CPU loading is applied using Passmark® BurnInTest 8.0. For detail testing criteria, please contact Neousys Technology.
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
