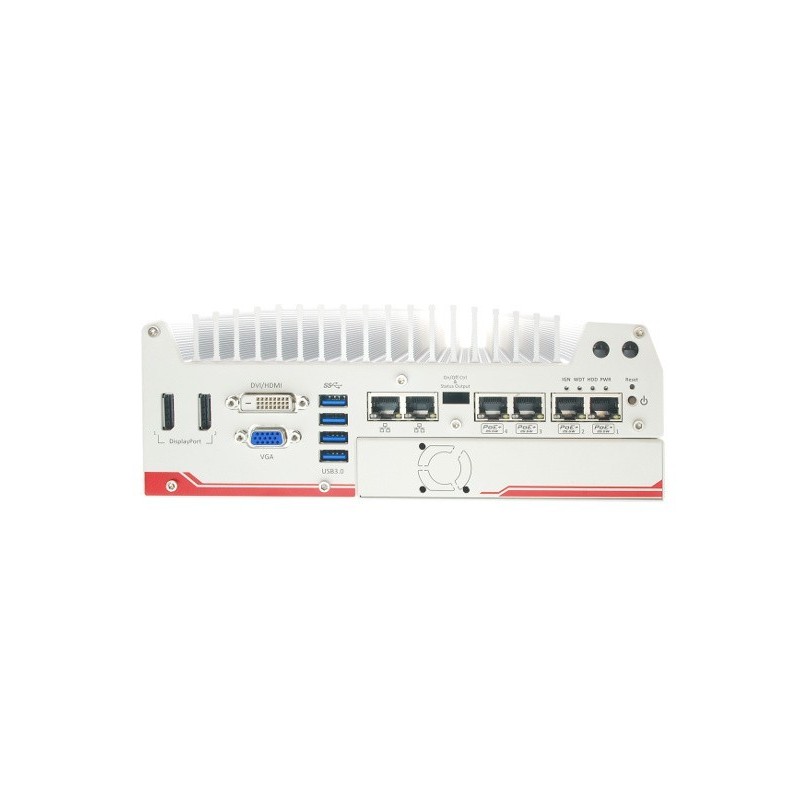

PC industriel durci Nuvo-5002E

Name: PC industriel durci Nuvo-5002E
Brand: Neousys
SKU: BBNENUVO-5002E

Référence BBNENUVO-5002E

Fabricant: Neousys

PC Fanless, Intel 6-Gen Core i7/i5, Chipset Intel Q170
Cassette PCIe cassette (x16,Gen3, 8lanes), Nvidia 750Ti en option
Alimentation 8~35Vdc, Ignition control en option
2xGbE (Intel I219,I210), iAMT11, TPM2, 4xUSB3, 4xUSB2, 3xCom
VGA, DVI-D, 2xDP, 2xSodimm DDR4 Max 32GB, 2xmPCIe, 2xUSIM
MezIO, 2x2.5" (RAID0/1), Op. Temp -25°~70°C

Description
Spécifications

Le NUVO-5002E, non ventilé de NEOUSYS, fonctionnant à des températures de moins 25°C à plus 70°C vous donne la possibilité de choisir la plateforme SKYLAKE pour processeurs de 6ème Génération Intel® Core ™ i7 / i5 / i3, de 35W à 65W TDP mais également d'installer les modules optionnels MezIOTM permettant d'ajouter des fonctionnalités pour s'adapter à vos applications les plus diverses.

Enfin, ce modèle dispose de 2 ports réseau et a la particularité d'intégrer une cassette d'extension brevetée pour faciliter l'installation de cartes additionnelles au format PCI/PCIe.

- Intel® 6th Gen Core™ i7/i5/i3 35W/65W socket-type CPU
- Patented Cassette for PCI/PCIe add-on card accommodation (* R.O.C Patent No. M456527)
- MezIO™ inteface for easy function expansion
- Rugged, -25°C to 70°C fanless operation
- Up to 2x GigE ports, supporting 9.5 KB jumbo frame
- Up to 32 GB, DDR4-2133 SODIMM
- Accommodates two 2.5" SATA HDD/SSD with RAID 0/1
- VGA/DVI/DP triple independent display, supporting 4K2K

System Core
Processor	Core™ i7-6700 (8M Cache, 3.4/4.0 GHz, 65W TDP)* Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP)* Core™ i3-6100 (3M Cache, 3.7 GHz, 51W TDP)* Pentium® G4400 (3M Cache, 2.4 GHz, 54W TDP)* Celeron® G3900 (2M Cache, 2.8 GHz, 51TDP)* Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP) Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset	Intel® Q170 Platform Controller Hub
Graphics	Integrated Intel® HD Graphics 530 (Core™ i7/i5/i3) Integrated Intel® HD Graphics 510 (Pentium®)
Memory	Up to 32 GB DDR4-2133 SDRAM by two SODIMM sockets
AMT	Supports Intel® AMT 11
TPM	Supports TPM 2.0
Front-panel I/O Interface
Ethernet	2x Gigabit Ethernet ports by Intel® I219 and I210 (Nuvo-5002E/P) 6x Gigabit Ethernet ports by Intel® I219 and 5x I210 (Nuvo-5006E/P)
PoE+	Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget
USB	4x USB 3.0 ports via native XHCI controller 4x USB 2.0 ports
Video Port	1x stacked VGA + DVI-D connector 2x DisplayPort connectors, supporting 4K2K resolution
Serial Port	2x software-programmable RS-232/422/485 port (COM1 & COM2) 1x RS-232 port (COM3)
Audio	1x Mic-in and 1x Speaker-out
Storage Interface
SATA Interface	2x Internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/1
mSATA	1x full-size mSATA port (mux with mini-PCIe)
Expansion Bus
PCI/PCI Express	1x PCI slot in Cassette (Nuvo-5002P/5006P) 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-5002E/5006E)
Mini PCI-E	1x mini PCI-E socket with front-accessible SIM socket 1x mini PCI-E socket with internal SIM socket (mux with mSATA)
Expandable I/O	1x MezIO™ expansion port for Neousys MezIO™ modules
Power Supply
DC Input	1x 3-pin pluggable terminal block for 8~35VDC DC input
Remote Ctrl. & Status Output	1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Mechanical
Dimension	240 mm (W) x 225 mm (D) x 90 mm (H)
Weight	4.4 Kg (including 2.5" HDD and DDR4 SODIMM)
Mounting	Wall-mounting (standard) or DIN-Rail mounting (optional)
Environmental
Operating Temperature	with i7-6700TE, i5-6500TE, i3-6100TE, Pentium G4400TE (35W TDP) -25°C ~ 70°C ** with i7-6700, i5-6500, i3-6100 (65W/51W TDP) -25°C ~ 70°C /* (configured as 35W mode) -25°C ~ 50°C /* (configured as 65W/51W mode)
Storage Temperature	40°C ~ 85°C
Humidity	10%~90% , non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMC	CE/FCC Class A, according to EN 55022 & EN 55024 EN 50155:2007

* For i7-6700 running at 65W mode, the high operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature..
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required..
