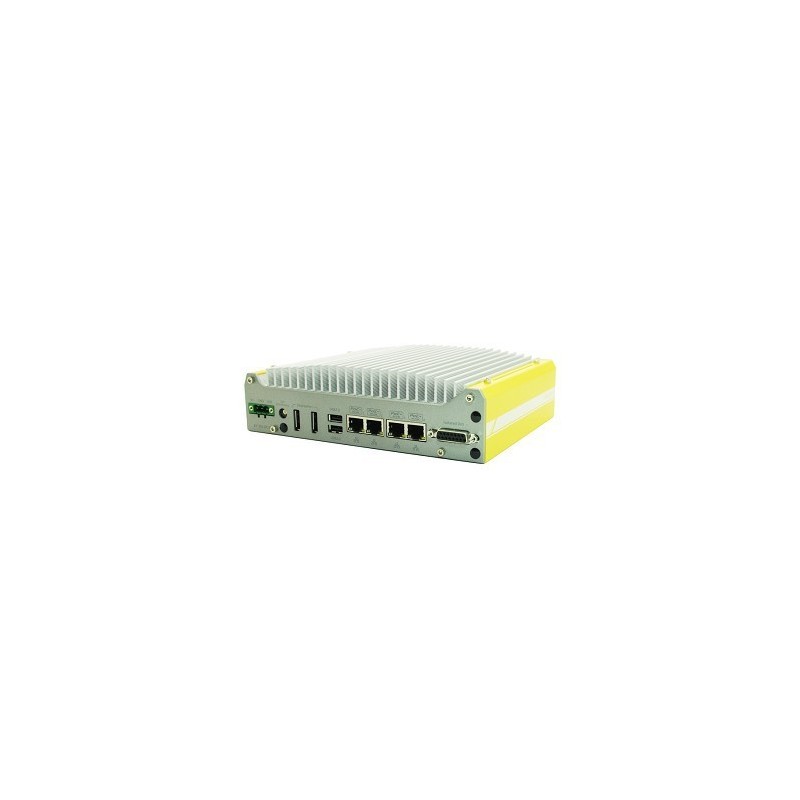

PC embarqué pour voiture Nuvo-3110VTC
BBNENUVO-3110VTC
PC pour Vehicules durci Fanless, 3rd-Gen Intel® Core™ i7/i5/i3, QM77 Chipset,
4x Glan Intel, 4*USB3.0, 2*USB2.0, 2*COM, 4*DI, 4*DO, DVI, 2*DP,
1*Hot Swap 2.5 SATA, 1*Internal SATA 2.5
Op. Temp. : -25 °C to 60 °C, 8~35Vdc + Ignition Control, E13 e-mark
Mini Ordinateur durci et non ventilé, pour véhicules
- Compact : 210 mm x 165 mm x 59 mm
- Puissant : supporte les processeurs Intel® Celeron/i3/i7/i5 de 3eme génération
- Interface DVI/VGA + 2*DisplayPort (supporte deux affichages indépendants)
- Deux emplacements pour disques 2.5" dont un en tiroir Hot-Swap
- Alimentation de 8 à 35V DC avec gestion intelligente de la clef de contact
- Certification E-Mark pour véhicules embarqués
| System Core | |
| Processor | Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache) |
| Chipset | Intel® QM77 PCH with AMT & RAID support |
| Graphics | Integrated Intel® HD Graphics 4000 Controller |
| Memory | 1x 204-pin SO-DIMM sockets, up to 8 GB DDR3 1333/1600 MHz SDRAM |
| I/O Interface | |
| Ethernet | 1x Gigabit Ethernet port by Intel® 82579LM 3x Gigabit Ethernet ports by Intel® i210 |
| Video Port | 1x DVI-I connector for VGA/DVI output, supporting 2048x1536 (VGA) or 1920x1080 (DVI) resolution 2x DisplayPort, supporting 2560x1600 resolution |
| USB | 4x USB 3.0 ports and 2x USB 2.0 ports |
| Serial Port | 2x software-programmable RS-232/422/485 (COM1 & COM2) |
| Isolated DIO | 4x isolated DI with COS interrupt and 4x isolated DO |
| Audio | 1x mic-in and speaker-out |
| Storage Interface | |
| SATA HDD | 1x Internal SATA port for 2.5” HDD/SSD 1x Hot-swapable HDD tray for 2.5” HDD/SSD |
| Msata | 1x full-size Msata (SATA/USB/W_DISABLE#) with USIM socket |
| Expansion Bus | |
| Mini PCI-E | 1x full-size mini PCI Express socket with USIM socket 1x half-size mini PCI Express socket |
| Power Supply & Ignition Control | |
| DC Input | 8~35V DC input via 3-pin pluggable terminal block |
| Ignition Control (Nuvo-3100VTC only) |
Ignition control with user-selectable on/off delay |
| Mechanical | |
| Dimension | 210 mm (W) x 165 mm (D) x 59 mm (H) |
| Weight | 2.4 Kg |
| Mounting | Wall-mounting (Standard) or DIN-Rail mounting (Optional) |
| Operating Temperature | |
| w/i7-3610QE 100% CPU loading |
-25°C ~ 50°C**(Max performance) -25°C ~ 60°C**(Reduced performance) -25°C ~ 70°C**(Extended performance) |
| w/i5-3610ME 100% CPU loading* |
-25°C ~ 60°C**(Max performance) -25°C ~ 70°C**(Reduced performance) -25°C ~ 70°C**(Extended performance) |
| w/Celeron 1020E 100% CPU loading* |
-25°C ~ 70°C** |
| Environmental | |
| StorageTemperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Certification | CE/FCC Class A, according to EN 55022 & EN 55024 E-Mark for vehicle applications |
* The 100% CPU loading is applied using Passmark® BurnInTest™ v7.0. For detail testing criteria, please contact Neousys Technology
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required..
