  • Carte mère ATX NAF91R-G41

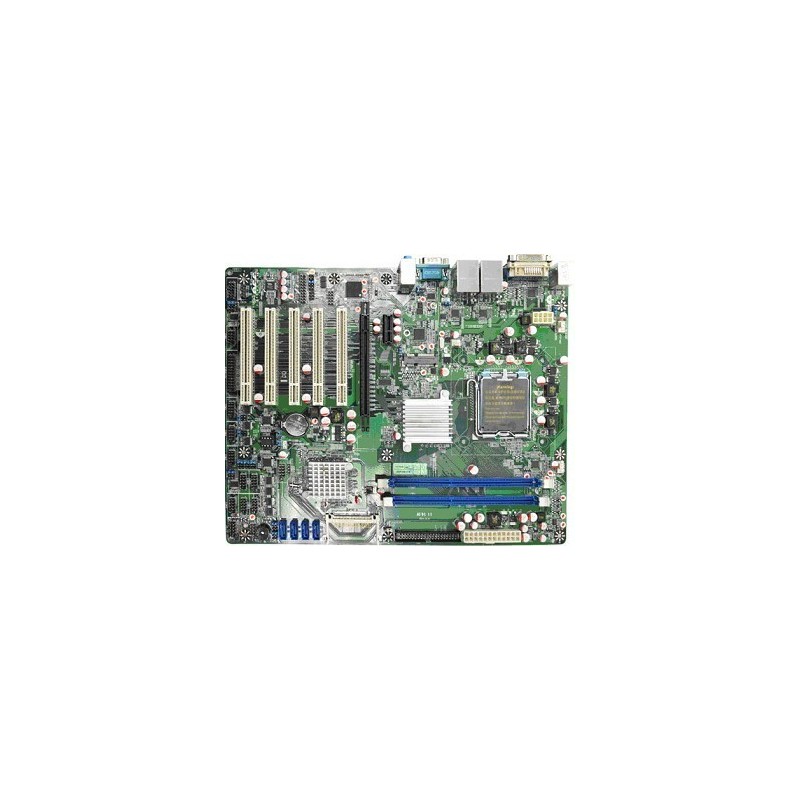

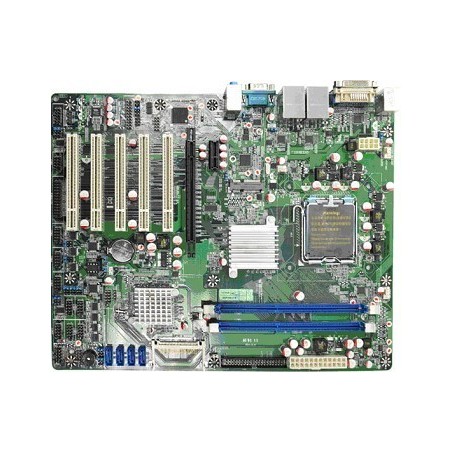

Carte mère ATX NAF91R-G41

CMJEJNAF91R-G41-LF

Jetway

ATX, LGA775 Socket, FSB 1066 MHz, INTEL G41 + ICH7R Chipset
2*2GB DDRIII, 2xGLan, 7xUSB2, VGA, DVI
5XPCI, PCIE, Mpcie, 1xCOM externe, 9xCOM interne, 4*SATA2

Envoyer à un ami

Carte mère industrielle ATX

- INTEL® G41 + ICH7R Chipset
- Support INTEL® LGA 775 Socket Core 2 Duo, Core 2 Quad & Celeron Processor
- Support 2 * 240 pin 2GB 800/1066/1333 Dual CH DDR3 SDRAM DIMM Max. to 4GB
- Support CPU Smart FAN
- Supports 2 * Gigabit LAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- ATX form factor

CPU INTEL® LGA 775 Socket Core 2 Duo, Core 2 Quad & Celeron Processor
Chipset INTEL® G41 + ICH7R Chipset
Front Side Bus 1066MHz
Memory 2 * DIMMs Sockets for un-buffered Dual Channel DDR3 1066 SDRAM up to 4 GB
Expansion Slots 1 *PCIe x 16, 5 * PCI, 1 * PCIe x 1
1 * MINI PCI-E
Storage 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10
1 * Ultra DMA 100 / 66 IDE connector
1 * CF card socket (share with IDE channel)
Audio VIA VT1705 6-Channel HD Audio CODEC
Ethernet LAN Realtek RTL8111E PCI-E Gigabit Ethernet LAN
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O  4 * USB 2.0/1.1 ports
1 * PS2/KB Connector
2 * RJ-45 port
1 * DVI-D port
1 * COM port
1 * VGA port
3 * Audio Phone Jack
Internal I / O  2 * USB 2.0/1.1 headers for 3 USB 2.0 ports
CPU /NB / Chassis Fan connectors
1 * Parallel header
1 * GPIO header
9 * COM header ( COM2 for RS232/422/485)
1 * TPM 1.2 header
1 * Chassis Intrusion header
1 * AUDIO header
1 * 24-pin & 8-pin 12V ATX Power connector
BIOS AMI 8MB DIP Flash ROM
Form Factor ATX Form Factor (305mm x 244mm)
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Temperature  Operating within 0~60 centigrade
Storage within -20-85 centigrade
