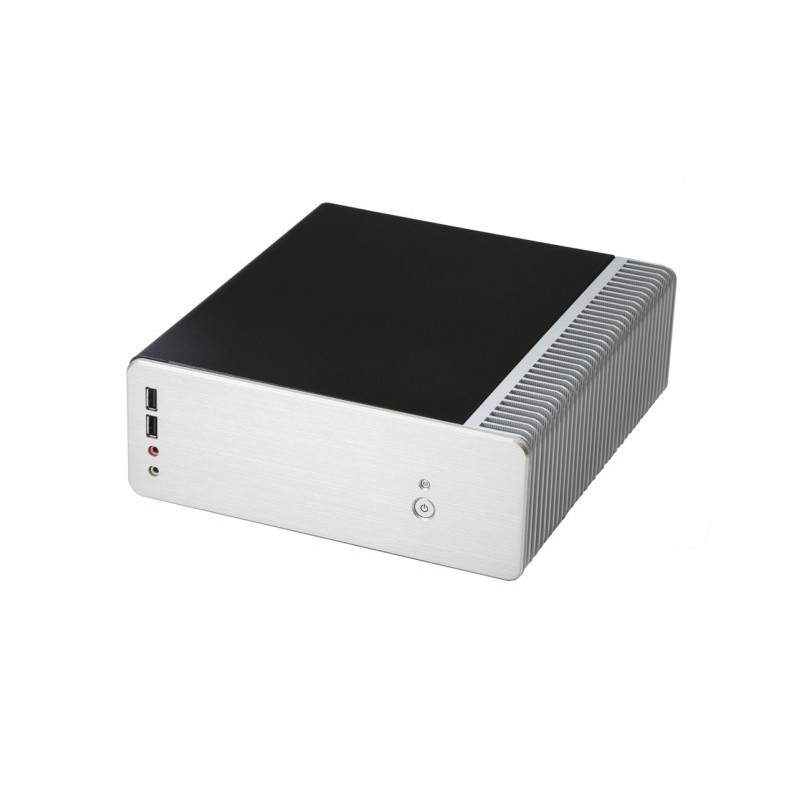

Boîtier Mini-ITX Fanless F526
BOITXTRF526_80W
Boitier Mini-ITX Fanless (TDP CPU 35 watts Max),
2U de hauteur,
Alimentation 80 Watts
2U de hauteur,
Alimentation 80 Watts
Le boîtier non ventilé F526 (hauteur :2U) est conçu pour les cartes mères Mini-ITX et est adaptable à la plupart des cartes mères grâce à son système de refroissement.
- For Mini-ITX motherboard with CPU TDP 35W max.
- Adjustable heat pipe solution provides excellent compatibility
- 4 x DB9 ports on rear I/O
- Support 1 x low profile expansion slot for PCI-E or PCI riser card
- Support 2.5" HDD x 3
- For Mini-ITX motherboard with CPU TDP 35W max.
- Adjustable heat pipe solution provides excellent compatibility
- 4 x DB9 ports on rear I/O
- Support 1 x low profile expansion slot for PCI-E or PCI riser card
- Support 2.5" HDD x 3
| Power switch | 1 |
| LED indicators | 1 x disk activity (Orange light) ; 1 x power on (Blue light ; Same as Power button) |
| USB port | 2 (USB 3.0) |
| Slim optical drive | none |
| Audio In/Out | 1 |
| IR receiver | none |
| Standard I/O shield | not included |
| Expansion slot-low profile | 1 |
| DB9 port | 4 |
| Heat-transfer device | Adjustable heat pipe solution |
| Memory height | Accept standard size |
| HDD/SSD # and type | 2.5" HDD x 3 |
| Dimensions | L:9.63"(244.5mm) x W:10.51"(267.0mm) x H:3.46"(87.8mm) |
| Applied M/B form factor | Mini-ITX |
| Material | SPCC and anodized aluminum panel |
| Surface | Black wet paint with texture coat |
| Colour | Black. Customizable colour |
| Internal DC Power Board | C7 (80w) DC Power Board |
| External AC Adapter | 80w: Input (AC 100~240V); Output (DC 12V@6.67A) |
