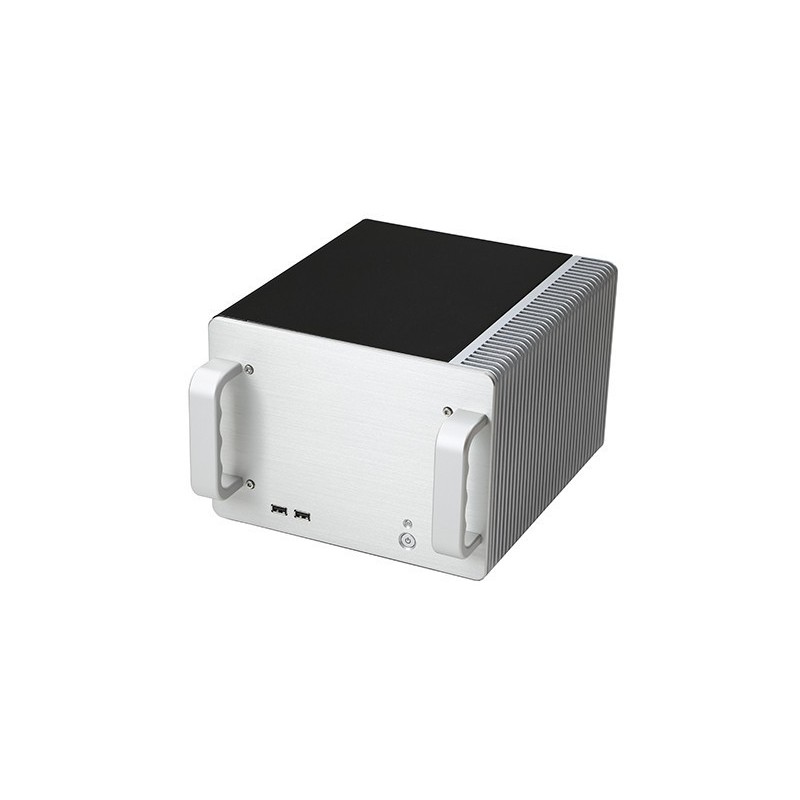

Boîtier Mini-ITX Fanless F546

BOITXTRF546_120W

Travla

Boitier Mini-ITX Fanless (TDP CPU 65 watts Max),
4U de hauteur, 3 Slots PCI/PCIe,
Alimentation 120 Watts

Envoyer à un ami

Le boîtier sans ventilateur F546 (hauteur : 4U) est équipé d'un système de refroissement adaptable à la plupart des cartes mères et dispose de 3 slots d'extension PCI/PCIe.

- For Mini-ITX motherboard with CPU TDP 65W max.
- Adjustable heat pipe solution provides excellent compatibility
- 4 x DB9 ports on rear I/O
- Support 3 x expansion slot for PCI-E or PCI riser card
- Support 2.5" HDD x 2 and 3.5" HDD x 1

Front Panel Back Panel Internal Structure Mechanical & Processing Power Solution

Power switch 1
LED indicators 1 x disk activity (Orange light) ; 1 x power on (Blue light ; Same as Power button)
USB port 2 (USB 3.0)
Slim optical drive none
Audio In/Out none
IR receiver none
Standard I/O shield not included
Expansion slot 3
DB9 port 4
Heat-transfer device Adjustable heat pipe solution
Memory height Accept standard size
HDD/SSD # and type 2.5" HDD x 1, 3.5" HDD x 1
Dimensions L:9.57"(243.0mm) x W:10.55"(268.0mm) x H:6.89"(175.0mm)
Applied M/B form factor Mini-ITX
Material SPCC and anodized aluminum panel
Surface Black wet paint with texture coat
Colour Black. Customizable colour
Internal DC Power Board C4 (150W, 19V~24V) DC Power Board
External AC Adapter 120W: Input (AC 100~240V);
Output (DC 19V@6.32A)
