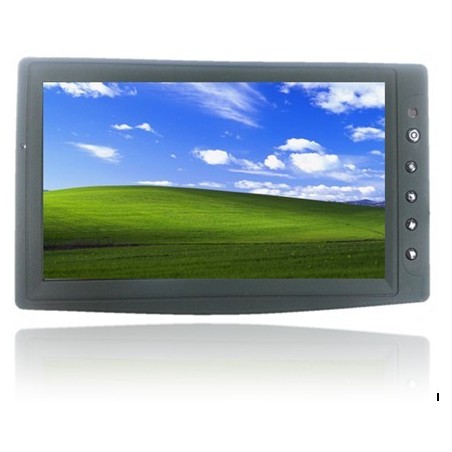

Ecran 8" tactile SEF800TPC(W)-L Agrandir l'image

Ecran 8" tactile SEF800TPC(W)-L

MONISEF800TPC(W)-L

Seform

Ecran 8" 16:9, résolution : 800x480, brillance : 500 nits,
rétroéclairage : LED, tactilisation : 4W/5W résistive (USB),
1*VGA + 3*VIDEO IN, Speaker : OUI,
9~32v dc input, Façade/Boitier : Plastique/Plastique

Plus de détails

Ecran 8", 16:9, tactile avec rétroéclairage LED

- High Brightness 500nits
- LED Backlight With Lower Power Consumption
- 16:9 wide Screen
- Support VGA Resolution from 800x600~ 1920x1080 pixels
- NTSC/PAL/SECAM Auto Switching
- Three Video Inputs
- One VGA Input
- Two Audio Inputs (L/R)
- Built-In Speaker
- Touch screen (USB Interface)
- Auto Power On For VGA Mode
- Auto Dimmer Function
- Multi-Languages OSD Design (English, German, Spanish, French, Italian)
- Wider Operating Temperature -30~+85℃
- VESA Mountable 75x75mm
- With headrest Shroud & Stand
- 3-In-1 Cable

PANELScreen Size8 inch (Diagonal)
Display Resolution (dot)800(W) x RGB x 480 (H)
InterfaceDigital
Active Area (mm)176.64(W) x 99.36 (H)
Dot Pitch (mm)0.0736 (W) x 0.2070(H)
Color ConfigurationR.G.B. stripe
Backlight unitLED
Response time(On/Off)15/20 ms
Contrast Ratio300:1
Brightness500 nit
View Angle130(V) x 110(H) deg.
Input SignalVideo sourceR.G.B (0.7/1.0Vpp, 75 ohms)
FrequencyFh:30-80Khz, Fv: 60-75Hz
Audio1W x 1 Speaker
ResolutionSupported640x480~1920x1080 @60/70/75Hz
Recommended800x480 @60Hz
Power RatingInputDC9V-36V
TemperatureOperation(℃)-30~+85
Storage(℃)-30~+85
DimensionMonitor Dimension220(W) X 135(H) X 29(D)mm
Monitor With Shroud Dimension238(W) X 153(H) X 30(D)mm
CertificateE13/CE/FCC, RoHS
TouchKit DriverWindows 7/ vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0 Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme/ Mandriva / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog
AccessoriesMetal stand x 1, AC switching power supply x 1, Car Cigarette lighter adapter x 1, All-In-One cable x 1, Remote controller x 1, Touch driver x 1, Users manual x 1, Touch Stylus Pen x 1, Headrest Shroud x 1
