Agrandir l'image

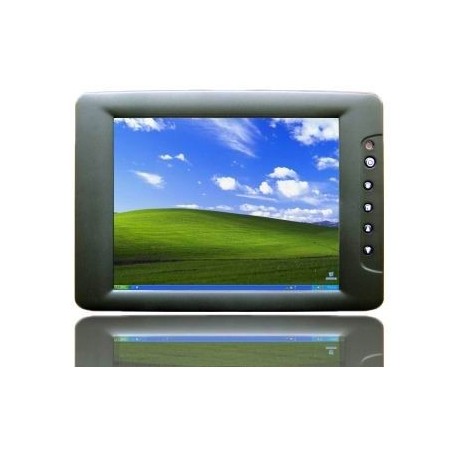

Ecran 8" tactile SEF800TPC-SLH
MONISEF800TPC-SLH
Ecran 8" 4:3, résolution : 800x600, brillance : 600 nits,
Lecture au soleil, rétroéclairage : LED,
tactilisation : 4W/5W résistive (USB), 1*VGA + 3*VIDEO IN,
Speaker : OUI, 9~32v dc input, Façade/Boitier : Plastique/Plastique
Ecran 8", 4:3, haute luminosité avec sunlight (lisibilité en plein soleil) et rétroéclairage LED.
- LED Backlight With Low Power Consumption
- 4:3 Aspect Ratio
- Resolution Supports from 640x480~ 1920x1080 pixels for VGA Mode
- NTSC/PAL/SECAM Auto Switching
- Three Video Inputs
- One VGA Input
- Auto Reversing Function For Video 3
- Auto Mirror Function for Reversing
- Touch Screen Function
- USB Interface
- Auto Dimmer Function
- Auto Power On/Off Function for VGA Mode
- Multi-Languages OSD Design ( English, German, French, Spanish, Italian)
- DC Input 9V-32V
- VESA Mountable 75x75 mm
- RoHS Compliant
| PANEL | Screen Size | 8 inch (Diagonal) |
| Display Resolution (dot) | 800(W) x RGB x 600 (H) | |
| Interface | Digital | |
| Driver Element | a-Si TFT active matrix | |
| Active Area (mm) | 162.0(W) x 121.5 (H) | |
| Dot Pitch (mm) | 0.2025 (W) x 0.2025(H) | |
| Color Configuration | R.G.B. stripe | |
| Backlight unit | LED | |
| Response time(Rise/Fall) | 4/16 ms | |
| Contrast Ratio | 500:1 | |
| Brightness | 600 nit | |
| View Angle(T/B/L/R) | 125(V)/ 140(H) deg. | |
| Input Signal | Video source | R.G.B (0.7/1.0Vpp, 75 ohms) |
| Frequency | Fh:30-80Khz, Fv: 60-75Hz | |
| Audio | 1W x 1 Speaker | |
| Resolution | Supported | 640x480~1920x1080 @60Hz |
| Recommended | 800x600 @60Hz | |
| Power Rating | Input | DC9-32V |
| Temperature | Operation(℃) | -10~+60 |
| Storage(℃) | -30~+70 | |
| Dimension | Overall(W)X(H)X(D)mm | 229.6x162.79x33.9 |
| Certificate | CE/FCC, RoHS | |
| TouchKit Driver | Windows 7/ vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0 Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme/ Mandriva / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog | |
| Accessories | Metal stand x 1, AC switching power supply x 1, Car Cigarette lighter adapter x 1, All-In-One cable x 1, Remote controller x 1, Touch driver x 1, Users manual x 1, Touch Stylus x 1 | |
