Ecran 8,4" tactile SEF804ATPC-LUH
search
  • Ecran 8,4" tactile SEF804ATPC-LUH

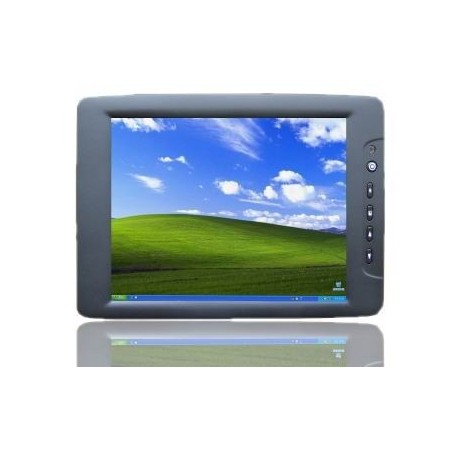

Ecran 8,4" tactile SEF804ATPC-LUH

MONISEF804ATPC-LUH

Seform

Ecran 8,4" 4:3, résolution : 800x600, brillance : 1 000 nits,
rétroéclairage : LED, tactilisation : 4W/5W résistive (USB),
1*VGA + 3*VIDEO IN, Speaker : OUI,
9~32v dc input, Façade/Boitier : Plastique/Plastique

Envoyer à un ami

Ecran 8,4", ultra haute luminosité, 4:3, avec rétroéclairage LED et LCD TFT.

- Brand New Industrial Application Panel
- High Brightness 1000 nits
- High Contrast 600:1
- LED Backlight With Low Power Consumption
- 4:3 Aspect Ratio
- Support VGA Resolution from 640x480~1920x1080 pixels
- NTSC/PAL/SECAM Auto Switching
- Three Video Inputs
- One VGA Input
- Two Audio Inputs(Stereo)
- Touch Screen Function
- Auto Power ON/OFF Function
- Auto Dimmer
- Multi-Languages OSD Design (English, German, Spanish, French, Italian)
- Wider DC Input 9-36V
- Wider Operating Temperature -30~+85℃
- VESA Mountable 75x75
- Long Product Lifetime of LED Backlight (50,000 hours Min.)

PANEL Screen Size 8.4 inch (Diagonal)
Display Resolution (dot) 800(V) x RGB x 600 (H)
Interface Digital
Driver Element a-Si TFT active matrix
Active Area (mm) 170.4(H) x 127.8 (V)
Dot Pitch (mm) 0.213(H) X 0.213(V)
Color Configuration R.G.B. stripe
Backlight unit LED
Contrast Ratio 600:1
Brightness 1000 nits
Response Time(R+F) 35 ms
View Angle 150(H) / 150(V) deg.
Electrical Interface LVDS
Operation Lifetime 50,000 Hr(Min.)
Input Signal Video source R.G.B (0.7/1.0Vpp, 75 ohms)
Frequency Fh:30-80Khz, Fv: 60-75Hz
Audio 1W x 1 Speaker
Resolution Supported 640x480~1920x1080 @60Hz
Recommended 800x600 @60Hz
Power Rating Input DC9-36V
Temperature Operation(℃) -30~+85
Storage(℃) -30~+85
Dimension Overall(W)X(H)X(D)mm 229.6x162.79x33.9
Certificate CE/FCC/E13, RoHS Compliance
TouchKit Driver Windows 7/ vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0 Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme/ Mandriva / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog
Accessories Metal stand OR VESA stand x 1, AC switching power supply x 1, Car Cigarette lighter adapter x 1, All-In-One cable x 1, Remote controller x 1, Touch driver x 1, Users manual x 1, Touch Stylus x 1
