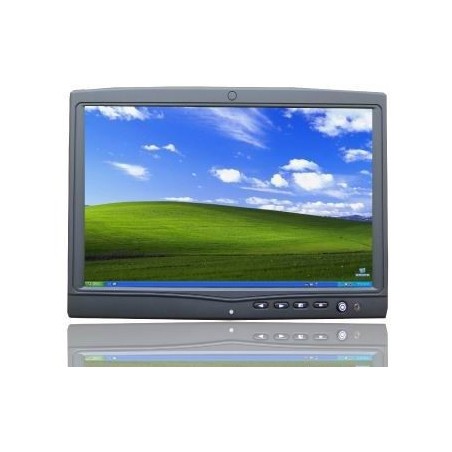

Ecran 10,1" tactile SEF101TPC Agrandir l'image

Ecran 10,1" tactile SEF101TPC

MONISEF101TPC

Seform

Ecran 10.1" 16:9, résolution : 1280x800, brillance : 800 nits,
rétroéclairage : LED, tactilisation : 4W résistive (USB),
1*VGA + 3*VIDEO IN, Speaker : OUI,
9~32v dc input, Façade/Boitier : Plastique/Plastique

Plus de détails

Ecran 10,1", 16:9, haute luminosité, rétroéclairage LED.

- High Brightness 800cd/m2
- 16:9 wide Screen
- High Resolution 1280x800
- LED Backlight With Lower Power Consumption
- One HDMI Input or One VGA Input (Optional)
- 2 Video Inputs
- 2 Audio Inputs(L/R Stereo)
- Built-In Speaker
- USB Interface
- Resolution Supports from 640x480~ 1920x1080 pixels
- Auto Power On/Off Function
- Auto Dimmer Function
- VESA Mountable 75x75mm
- RoHS Compliant

PANELScreen Size10.1 inch (Diagonal)
Display Resolution (dot)1280(W) x RGB x 800 (H)
InterfaceDigital
Active Area (mm)216.96(W) x 135.6 (H)
Dot Pitch (mm)0.0925 (W) x 0.276(H)
Color ConfigurationR.G.B. stripe
Backlight unitLED
Response time(Rise/Fall)12/15 ms
Contrast Ratio700:1
Brightness800 nit
View Angle(T/B/L/R)145(V)/150(H)deg.
LED for life30,000 Hr
Input SignalVideo sourceR.G.B (0.7/1.0Vpp, 75 ohms)
FrequencyFh:30-80Khz, Fv: 60-75Hz
Audio1W x 1 Speaker
ResolutionSupported640x480~1920x1080 @60Hz
Power RatingInputDC9-36V
TemperatureOperation(℃)-20~+60
Storage(℃)-30~+70
TouchKit DriverWindows vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0          Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog
