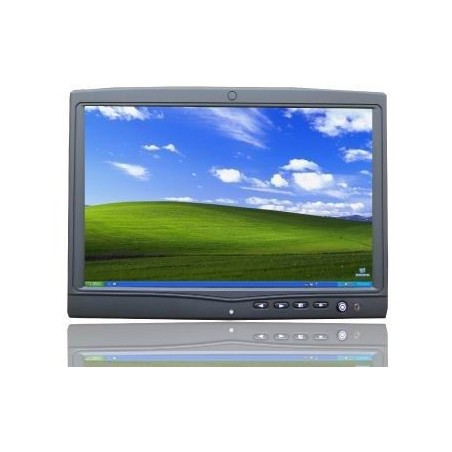

Ecran 10,2" tactile SEF102TPC-L
search
  • Ecran 10,2" tactile SEF102TPC-L

Ecran 10,2" tactile SEF102TPC-L

MONISEF102TPC-L

Seform

Ecran 10.2" 16:9, résolution : 800x480, brillance : 400 nits,
rétroéclairage : LED, tactilisation : 4W résistive (USB),
1*VGA + 3*VIDEO IN, Speaker :OUI,
9~32v dc input, Façade/Boitier : Plastique/Plastique

Envoyer à un ami

Ecran 10,2", 16:9 avec rétroéclairage LED.

- Brightness 400nits
- LED Backlight With Lower Power Consumption
- 16:9 wide Screen
- Support VGA Resolution from 640x480~ 1920x1080 pixels
- NTSC/PAL/SECAM Auto Switching
- Three Video Inputs
- Two Audio Inputs(Stereo)
- Auto Reversing Function For Video 3
- One VGA Input
- USB Interface
- Touch Screen Function
- Auto Power On/Off Function
- Auto Dimmer Function
- Wider Operating Temperature -30~+85℃
- VESA Mountable 75x75mm
- RoHS Compliant

PANEL Screen Size 10.2 inch (Diagonal)
Display Resolution (dot) 800(W) x RGB x 480 (H)
Interface Digital
Driver Element a-Si TFT active matrix
Active Area (mm) 222.0(W) x 132.48 (H)
Dot Pitch (mm) 0.0925 (W) x 0.276(H)
Color Configuration R.G.B. stripe
Backlight unit LED
Response time(Rise/Fall) 15/20 ms
Contrast Ratio 300:1
Brightness 400 nits
View Angle(H/V) 130/110 deg.
Input Signal Video source R.G.B (0.7/1.0Vpp, 75 ohms)
Frequency Fh:30-80Khz, Fv: 60-75Hz
Audio 1W x 1 Speaker
Resolution Supported 640x480~1920x1080 @60Hz
Recommended 800x480@60Hz
Power Rating Input DC9-36V(G Mode)
Temperature Operation(℃) -30~+85
Storage(℃) -40~+85
Dimension Overall(W)X(H)X(D)mm 251.5x176x27.5
Certificate CE/FCC, RoHS
TouchKit Driver Windows vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/ CE 2.12/3.0 Embedded/ Dos Mac OS 9X / OS X(Intel CPU) Linux Readme / Mandrake / Red Hat / Fedora Core / SuSE / Debian / (K)Ubuntu / Yellow Dog
Accessories VESA stand x 1, AC switching power supply x 1, Car Cigarette lighter adapter x 1, All-In-One cable x 1, Remote controller x 1, Touch driver x 1, Users manual x 1, Touch Stylus x 1
