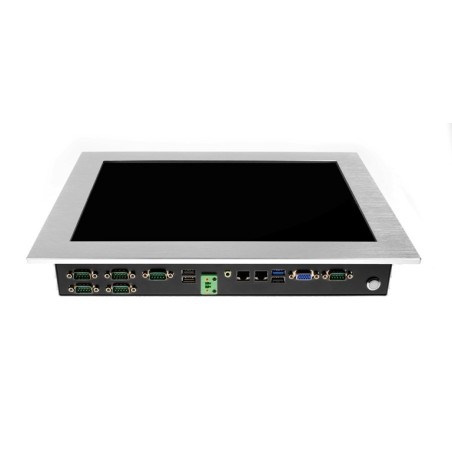

Panel PC tactile 15" HPC150BR-2930-4G

PPCT150BR-2930-4G

Jetway

Slim Panel PC Tactile 15", 1024x768, 350cd/m2,Tact. Resistif 5 fils,
Celeron N2930, 4GB Ram, VGA, 4xUSb, 3xCom,2xGLan, mSATA,
2.5 SATA, WiFi, 9~24VDC sur Term. Block., 376mm*300mm*54mm, IP65
Envoyer à un ami
Panel PC industriel 15" durci, pourvu d'un châssis en acier avec une face avant protégée contre la poussière et contre les projections d'eau (certifié IP65).

- INTEL® BayTrail--M N2930 SOC Chip
- Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
- Onboard SAMSUNG 4G/1333MHz DDR3L Memory
- Support DirectX 11 3D Graphics Acceleration
- Support 1*Serial ATAII(3Gb/s) Devices
- Support Dual INTEL® Gigabit LAN
- Support CRT Output
- Equipped with 802.11 b/g/n WIFI card & External Antenna
- Support 6* COM ports（COM2/COM3 Support RS422/485)
- Support 2.5” SATA HDD
- Support 1*M-SATA Socket
- Support 1*Mini PCI-E Socket
- Support 3* USB2.0 Ports
- Support 1* USB3.0 Port
- Support 3G SIM Card
- Support slick design
- VESA mount(100mm X100mm &75mm x 75mm)

Panel

Panel SpecAUO G150XTN03.0
Viewable Size Image150 inch With LED Backlight
Active Area304.128(H) x 228.096(V)
Resolution1024 x 768 @60Hz
Display Color262K
Pixel Pitch0.297 x 0.297 mm
Aspect Ratio4:03
Contrast Ratio700:01:00
Max Brightness350 cd/m²
Viewing Angle(H/V)H170/V160
Response Time5.7ms
Temperature Range0 ～ +65℃(Operating)

Touch

Touch panel style5 wires analog resistive
Active Range304.10 x 228.10mm ±0.2mm
Temperature Range-10 ~ +60℃(Operating)
Transparency80 ±3%
Surface Hardness≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force≦ 80g
Knock test10,000,000 times keystrokes

Case

Panel MaterialN/A
Case MaterialIron
ColorBlack
Coating RequirementSpray Paint
Protection grade（IP）IP65
Speaker2-CH(3W)
Bracket6 (Top:2pcs、Side:4pcs, Optional)
Installation TypeOpen Frame
Cooling ModeFan less Fully sealed design

System Specification

Form Factor4”
ProcessorINTEL® BayTrail-M N2930 1.83GHz/QC
System ChipsetINTEL® BayTrail-M N2930 (SOC)
System Memory4G/1333MHz DDR3L SAMSUNG DRAM
BIOS64MB SPI Flash ROM
Ethernet2*INTEL® I211AT Gigabit LAN
AudioRealtek®  ALC887 HD Audio
Storage1* Serial ATA2 3Gb/s connector
1* M-SATA connector
WIFI ModuleN/A(Option)
Optical DeviceN/A
ExpansionPCI-E mini card for WLAN
Display OutputCRT
I.O Port1*USB3.0、3*USB2.0、4*RS232、
2*RS232/422/485、1*Line-out
Power AdapterDC-IN (9~24V,Euro terminal block)
OS SupportWindows 7/8/8.1
TemperatureOperating：-10 ~ +60℃
Humidity20%~90% (non condensing)
ShockOperating：15G，11ms duration
Vibration Operating：5~500Hz/1 Grms
Net Weight (kg)　
Dimension376.0mm*300.0mm*54.0mm
CertificationFCC   CE
OtherSupport Non wire I.O interface output

Other Information

ApplicationCommercial、Banking、Digital Signage
POS/KIOSK、Industrial Automation
Special FeaturesMetal design, compact、slick
OtherOptional wall hanging telescopic bracket, etc., can also be used as the embedded security
