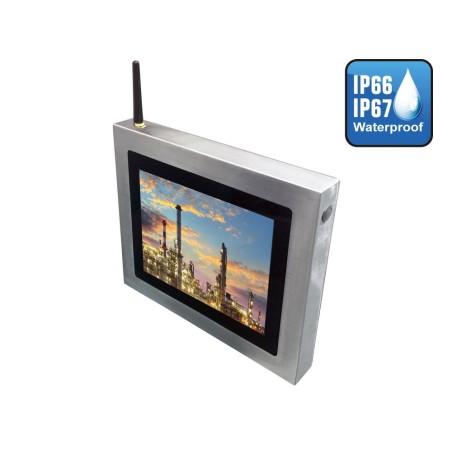

Panel PC 19" tactile P91-BTH200

PPCTP91-BTH200

Lex Computech

Panel PC en Acier Inoxydable Tactile 19", 1280x1024, 350cd/m2,
Tact. Capacitif, Atom E3825, 4GB Ram, 5xUSb, 4xCom,2xGLan,
mSATA, 2.5 SATA, 2xmPCIe, 9~36VDC, Op. Temp. -20°C~60°C,
IP66, IP67, Dim.476.4Wx45 Hx404.6D mm

Plus de détails

Ce panel PC industriel 19" fanless, tactile est en acier inoxydable et aux normes IP66 et IP67. Modulable, il offre la possibilité de sélectionner 5 connecteurs (LAN,COM,USB,VGA) parmi un panel de 10 , ses sorties en façade arrière n'étant pas prédéfinies.

- Embedded Intel® Bay Trail-I E3845 CPU/Chipset
- On Board 4GB DDR3L, LVDS (or eDP option), VGA,
- HD Audio, 4 x COM
- 2 x Intel GbE LAN, 4 x USB 2.0, 1 x USB 3.0
- 2 x Mini PCIe
MODEL19" + 2I385HW
Dimension (mm)476.4W x 45 H x 404.6D mm
Weight7.5 Kg
Hard drive2.5" HDD
LCD brandAUO
LCD size19 inch, 4:3
Max Resolution1280 x 1024
Luminance (cd/m2)350
Contrast Ratio1000:1
Viewing Angle (H-V)60(U), 80(D), 80®, 80(L)
BacklightLED
Touch ScreenCapacitive touch screen
MB2I385HW
CPUIntel Bay Trail-I E3845 1.91 GHz (Quad Core)
Chipset
MemoryType / Capacity E3845 DDR3L 1333MT/s
On board memory4GB
SSD StoragemSATAYes
VGA5 Selectable I/O connectors of LAN / COM / USB / VGA
USB
COM
Mini-PCIe2
SIM Card HolderN/A
GPIO4DI / 4DO (Optional)
EthernetIntel GbE x 2
(5 Selectable I/O connectors of LAN / COM / USB / VGA)
AudioLine-out / Mic-in (Optional)
Power InputWide Range +9~36V
Batteryoption (3500~10500mAh)
MountingVESA 100 & Panel Mount
Panel frame water proofIP66 / IP67
Optional MB2I268H
ExpansionGPS, 3G / 4G, Bluetooth, WI-FI, I/O, Video Card
Operating Temp.-20°C~60°C for mSATA / SSD HDD
Operating Humidity5~90% @ 39°C, non-condensing
