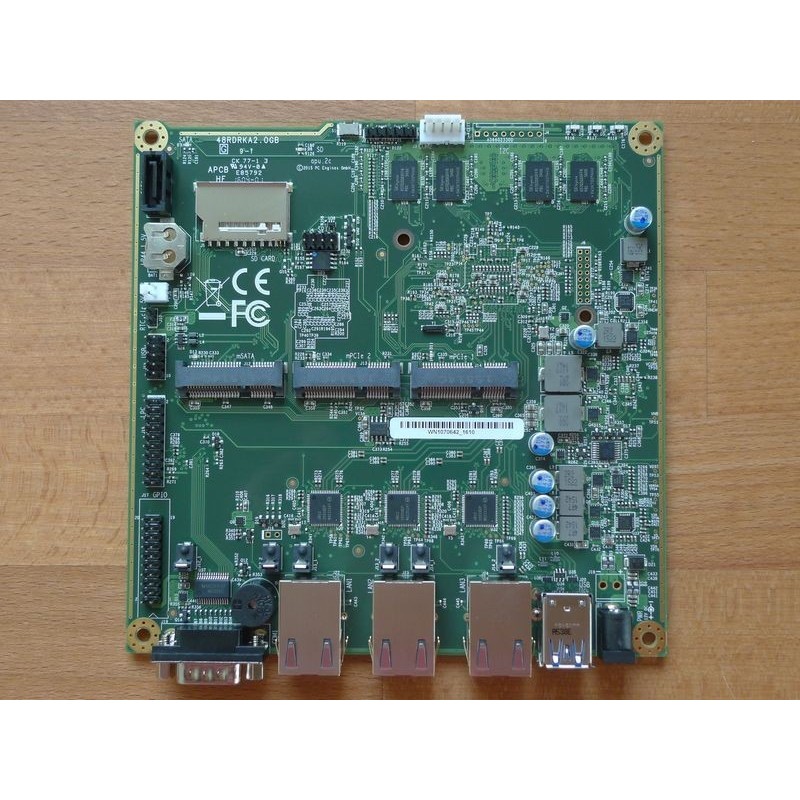

Carte mère APU2C2
CMAPU2C2
3 GLAN, 2 GB DRAM, GX-412TC quad core ,12vdc 2.5jack,
SATA, mSata, 2* mPCIe, SIM Socket, USB, SD Card, 152.4x152.4mm
SATA, mSata, 2* mPCIe, SIM Socket, USB, SD Card, 152.4x152.4mm
178€82 TTC
149€02HT
dont 0,02 € TTC d'éco-participation
L'APU2C2 de PC Engines est une carte mère performante pour les applications réseau et embarquées :
- CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
- DRAM: 2 or 4 GB DDR3-1333 DRAM
- Storage: Boot from m-SATA SSD, SD card (internal sdhci controller), or external USB. 1 SATA + power connector.
- 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
- Connectivity: 2 or 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4)
- I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
- Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
- Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
- Firmware: coreboot (please contact support@pcengines.ch for source code if desired).
- Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).
- CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
- DRAM: 2 or 4 GB DDR3-1333 DRAM
- Storage: Boot from m-SATA SSD, SD card (internal sdhci controller), or external USB. 1 SATA + power connector.
- 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
- Connectivity: 2 or 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4)
- I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
- Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
- Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
- Firmware: coreboot (please contact support@pcengines.ch for source code if desired).
- Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).
| CPU | AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache. |
| Mémoire | 2 GB DDR3-1333 DRAM |
| Stockage | Demarrage à partir du SSD m-SATA, Carte SD (controleur sdhci), ou d'un peripherique externe USB. 1* Port mSATA 1* Port SATA + Alimentation SATA. |
| Alimentation | 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive. |
| Réseau | 3 * Intel Giga Lani210AT |
| Connecteurs Externe | 3 * RJ45, 2*USB, 1*DC JACK, 1*DB9 |
| Ports d'extension | 1*mPCI Express 1*mPCI Express avec lecteur SIMM |
| Connecteurs Interne | LPC Bus, GPIO Header, COM2 (3.3v TXD/RxD), 2*USB |
| Taille | 152.4 x 152.4 mm |
| Refroidissement | Passif via un dissipateur en Aluminium en contact avec le boitier par l'intermédiaire d'un pad thermique autocollant(inclus) |
| Bios | CoreBoot |
