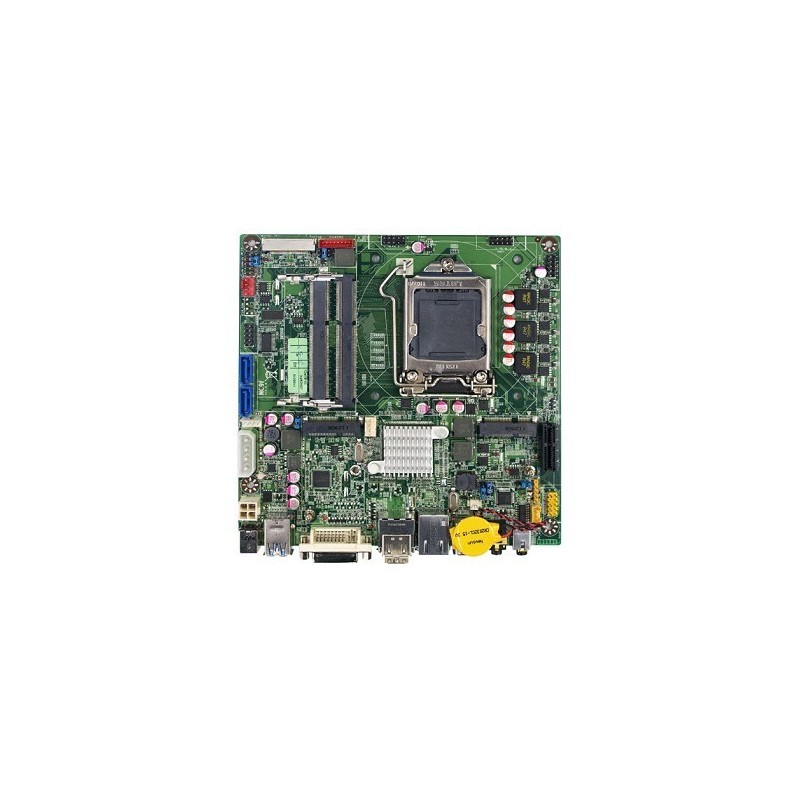

Carte mère Mini ITX NC9F-H61

CMJEJNC9F-H61

Jetway

Mini ITX, INTEL LGA1155 CPU, Core i7/i5/i3 CPU
INTEL H61 Chipset, 2*DDR3, GLan, 8USB,
DVI, LVDS, HDMI, RS232
4*SATA.Compatible Windows XP, Windows 7
Envoyer à un ami
204€76 TTC
170€63HT

dont 0,02 € TTC d'éco-participation

Quantité

 Carte mère Mini-ITX avec support processeur Core 2 Duo, Core 2 Quad et Celeron

- INTEL® H61 Chipset
- Support INTEL® LGA 1155 Socket Core 2 Duo, Core 2 Quad & Celeron Processor
- 2 * Dual Channel SO-DIMM DDR3-1333/1066 up to 8GB
- Support CPU Smart FAN
- Supports ACPI S3 Function
- Support Watch dog Technology
- Thin Mini ITX form factor
CPU INTEL® LGA 1155 Socket Core 2 Duo, Core 2 Quad & Celeron Processor
Chipset INTEL® H61 Chipset
Memory 2 * SO-DIMM Sockets Dual Channel DDR3 1066/1333 SDRAM up to 8 GB
Expansion Slots 1 *PCIe x 1
Storage 2 * Serial ATA2 3Gb/s connectors
2 * MINI PCI-E sockets (1 for half size & 1 for full size)
Audio Realtek ALC887-GR 7.1-Channel HD Audio CODEC
Ethernet LAN Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN *1
USB Embedded 6 * USB 2.0/1.1 & 2 * USB3.0
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O  2 * USB 2.0/1.1 ports
2 * USB 3.0 ports
1 * eSATA (SATA 2.0)
1 * HDMI
1 * 19V DC-in jack
1 * RJ-45 port
1 * DVI-I port
1 * MIC-in & 1 * Line-out (S/PDIF) jacks
Internal I / O  2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
CPU /System Fan connectors;
1 * COM header
1 * eDP
1 * 24-bits Dual CH LVDS & 1 * Inverter connector
1 * CIR header
1 * AUDIO header
1 * Front panel header
1 * Speaker header
1 * FPD Brightness connector
1 * 4-pin ATX Power connector
BIOS AMI 8MB DIP Flash ROM
Form Factor Thin Mini ITX Form Factor (170mm x 170mm)
Functional ATM, POS, AIO, Digital Signage
Certificate CE, FCC, RoHS
Temperature  Operating within 0~60 centigrade
Storage within -20-85 centigrade
