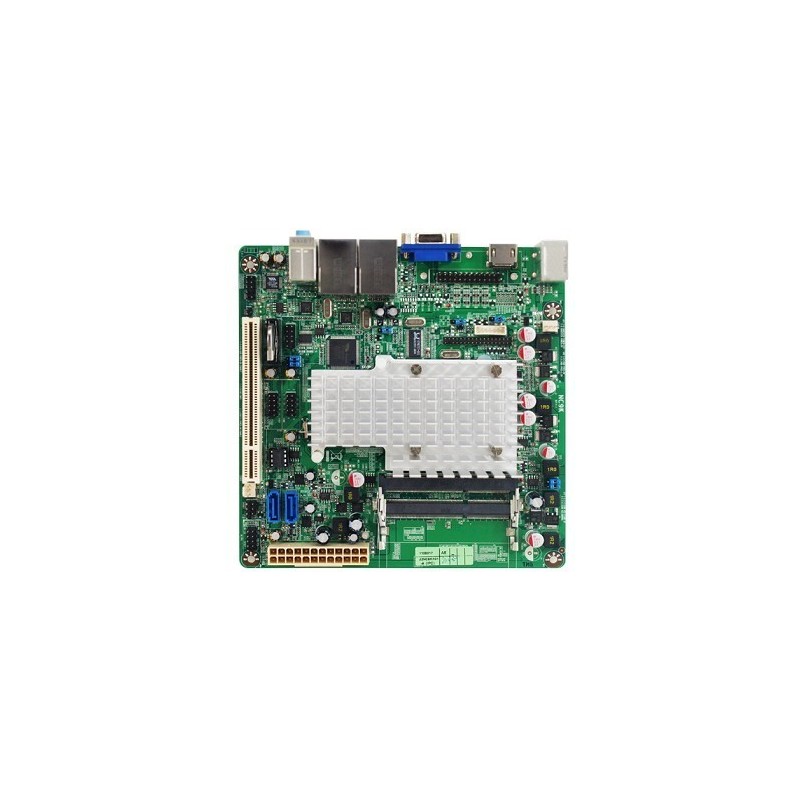

Carte mère Mini ITX NC9KSL
CMJEJNC9KSL-2500
Mini ITX, INTEL D2500 (1.86Ghz), INTEL NM10 Chipset
2*DDRIII 1067, Gibabit Lan, 8USB, VGA, LVDS, HDMI, PCI,
Alim ATX, RS232 interne, 2*SATAII
174€26 TTC
145€22HT
dont 0,02 € TTC d'éco-participation
La carte mère Jetway Mini-ITX NC9KSL-2500 au processeur Atom Dual Core D2550 (1.86GHz) peut être utilisée pour un large panel d’applications comme l'affichage dynamique, la surveillance, l'automatisation dans l’industrie ou encore les applications médicales, les applications sur lieux de vente (PO/Kios/ATM) mais aussi pour les serveurs de stockage, serveurs mail, serveurs d’impression, réseaux-Thin Client-Slim Nettop.
- INTEL® Cedar Trail-D Processor D2500 + NM10 Chipset
- Support 2 * DDR3 800/1067MHz Single CH up to 4GB
- Support 2 * Serial ATAII (3Gb/s) Devices
- Integrated VIA ALC662 HD Audio CODEC with 6-CH
- 1 * 24 bits Single Channel LVDS header (Optional)
- Supports 1 * Realtek RT8111EVL Gigabit LAN
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
- Mini-ITX Form Factor (170mm x 170mm)
- INTEL® Cedar Trail-D Processor D2500 + NM10 Chipset
- Support 2 * DDR3 800/1067MHz Single CH up to 4GB
- Support 2 * Serial ATAII (3Gb/s) Devices
- Integrated VIA ALC662 HD Audio CODEC with 6-CH
- 1 * 24 bits Single Channel LVDS header (Optional)
- Supports 1 * Realtek RT8111EVL Gigabit LAN
- Support Watch dog Technology
- Support CPU Smart FAN
- Compliance with ErP standard
- Mini-ITX Form Factor (170mm x 170mm)
| Processor | Atom Dual Core D2500 (1.86GHz@10W) |
| Chipset | Intel NM10 |
| Memory | 2 x 204-pin DDR3-800/1066 SO-DIMM slot up to 4 GB |
| Graphics | PowerVR SGX 545 (GMA 3600@400MHz) Integrated Graphics for D2500 |
| Audio | Realtek ALC662 5.1 Channel Audio |
| LAN | 1 x Realtek RTL8111EVL PCI-E Gigabit Ethernet |
| Storage | 2 x SATA2 3Gb/s Port |
| Features | Supports Dual Independent Displays |
| HDMI/VGA and 24-bit LVDS Video Outputs | |
| Watchdog Timer System Reset, 1-255 min/sec | |
| ECO-design for EuP Standard | |
| Back Panel Connectors | 1 PS/2 Mouse Port |
| 1 PS/2 Keyboard Port | |
| 1 HDMI | |
| 1 VGA (D-Sub) | |
| 4 USB 2.0 | |
| 1 RJ45 LAN (10/100/1000) | |
| 3 3.5mm Audio with S/PDIF out | |
| Onboard I/O Connectors | 1 PCI Slot |
| 1 Serial header (RS232) | |
| 2 SATA2 3Gb/s Connectors | |
| 2 USB Pin Headers for up to 4 additional USB 2.0 Ports | |
| 1 Parallel header | |
| 1 32-pin 24-bit single channel LVDS header/inverter (PowerVR SGX 545 chipset) | |
| 1 9-pin Audio header | |
| 1 24-pin ATX Power Connector | |
| 1 Front Panel header | |
| 3 Fan header |
Mini ITX, INTEL D2500 (1.86Ghz), INTEL NM10 Chipset
2*DDRIII 1067, Gibabit Lan, 8USB, VGA, LVDS, HDMI, PCI,
Alim ATX, RS232 interne, 2*SATAII
