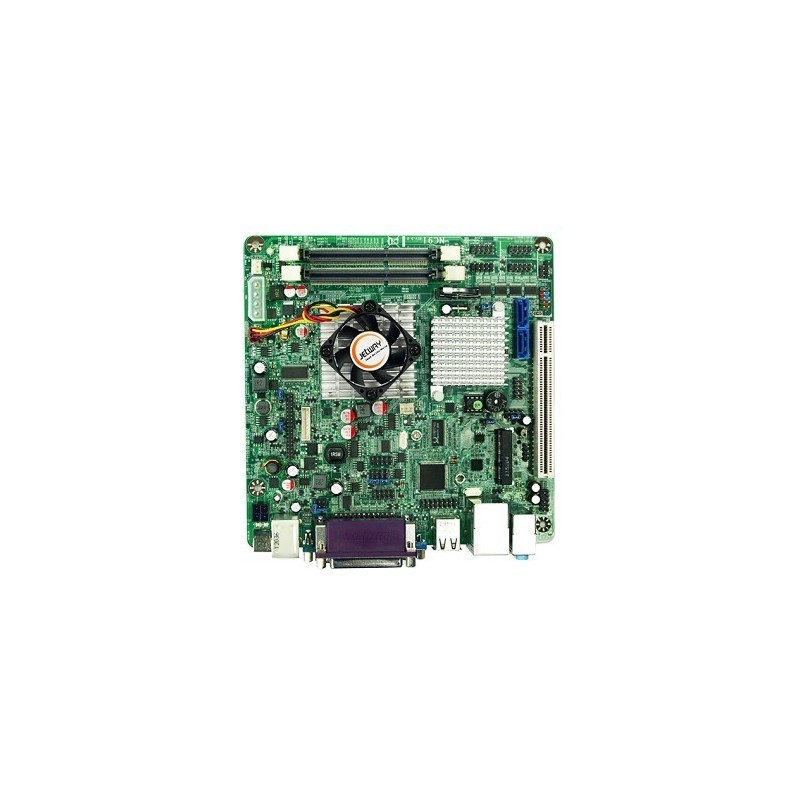

Carte mère Mini ITX NC91

CMJEJNC9I-525

Jetway

Mini ITX, INTEL ATOM D525, INTEL NM10 Chipset,
2*DDRII, 1*GLan, 9*USB, VGA, 24Bit Single LVDS, PCI
RS232 externe + RS485 interne, 2*SATAII + 1*eSATA

Envoyer à un ami
203€30 TTC
169€42HT

dont 0,02 € TTC d'éco-participation

Quantité

Carte mère Mini-ITX avec processeur INTEL Dual-Core D525

- Intel Atom D525 + NM10 Chipset
- Support INTEL® Atom Dual-Core D525 CPU
- Support 2 * 3Gb/s SATAII
- Support 2 * DDR3 800MHz Single CH SO-DIMM up to 4GB
- Supports 1 * Gigabit LAN
- Support 6 * COM ports (COM2 for RS232/422/485)
- Integrated Realtek ALC662 HD Audio CODEC with 6-CH
- Support Watchdog Technology
- Mini-ITX Form Factor(170mm x 170mm)
CPUINTEL ® Atom Dual-Core Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
ChipsetINTEL® Atom D525 + NM10
Memory2 * DDR3 800MHz Single CH SO-DIMM up to 4GB
Expansion Slots1 * PCI slot, 1 * Mini PCI-E socket
Storage2 * Serial ATA2 3Gb/s connectors
AudioRealtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN1 * Realtek RTL8111EVL Gigabit LAN
LVDS Onboard 24-bit single channel LVDS connector
USBEmbedded 7 * USB 2.0/1.1
Rear Panel I/O 4 * USB 2.0/1.1 ports
1 * PS/2 Mouse & Keyboard connector
1 * RJ-45 port
3 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * COM port
1 * Parallel port
1 * 12V DC-in jack
Internal I/O 3 USB 2.0 ports
3 * NB / Chassis Fan connectors;
1 * 24-pin ATX Power connector
1 * LVDS header/ 1* CD IN /1 * GPIO
1 * AUDIO header
5 * COM headers (COM2 for RS232/RS422/RS485)
BIOSAMI 8MB DIP Flash ROM
FunctionalATM, KIOSK, POS Machine, Digital Signage, General Application
PackingColor Box DimensionF200(W) x 200(D) x 70(H)mm
CertificateCE, FCC, RoHS
TemperatureOperating within 0~40 centigrade
Storage within -20-85 centigrade
Form FactorMini ITX Form Factor(17cmx17cm)
