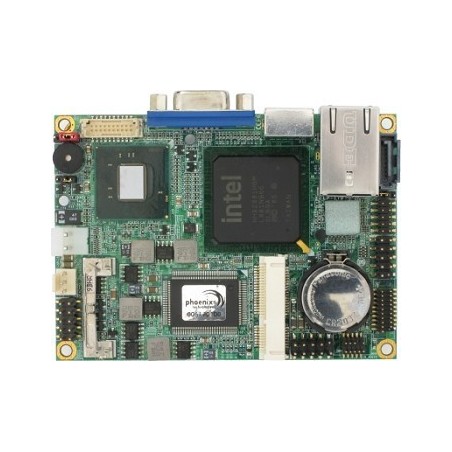

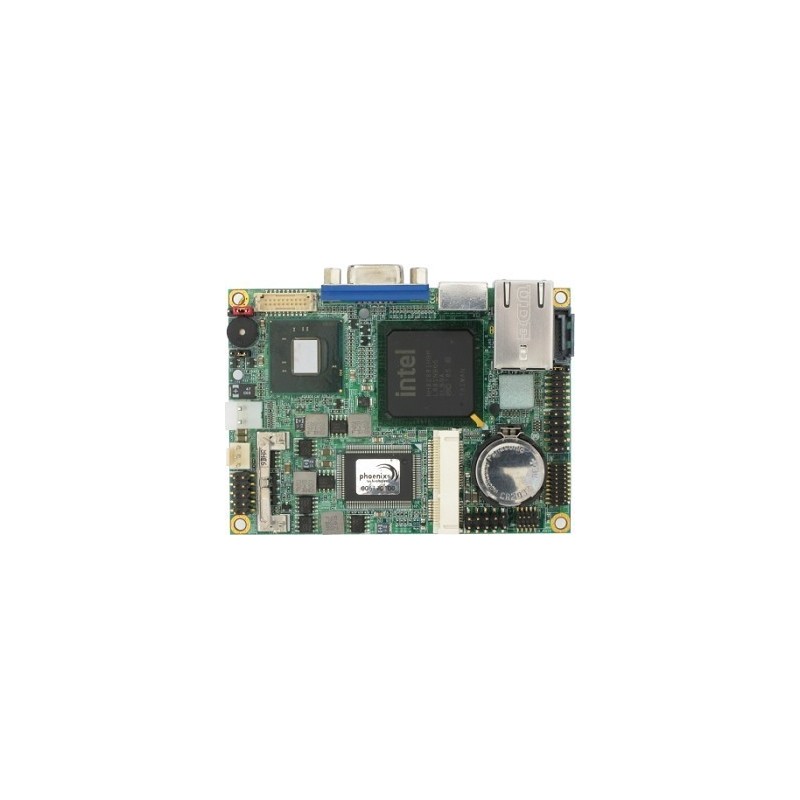

Carte mère Commell LP-170C
CMCOLP-170C
Pico-ITX Embedded Intel Atom D525 CPU mini board
DDR2 SO-DIMM, with LVDS, VGA, 2 x RS-232C, Intel Giga LAN
4 x USB2.0, HD Audio, SATAII, CF , mini-PCIE, DV 12V input.
DDR2 SO-DIMM, with LVDS, VGA, 2 x RS-232C, Intel Giga LAN
4 x USB2.0, HD Audio, SATAII, CF , mini-PCIE, DV 12V input.
412€39 TTC
343€66HT
dont 0,02 € TTC d'éco-participation
Carte Pico-ITX supports Intel Atom D525 dual-core processor
Intel ICH8M system chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 GB
Onboard VGA, LVDS, Intel Giga LAN, Audio, COM, USB2.0
Intel ICH8M system chipset
DDR2-667 SO-DIMM SDRAM up to 2.0 GB
Onboard VGA, LVDS, Intel Giga LAN, Audio, COM, USB2.0
| Form Factor | Pico-ITX |
| CPU | Intel® AtomTM D525, 1.8GHz, 1MB cache (LP-170A) Package type : Micro-FCBGA (FCBGA559) |
| Memory | 1 x 200-pin DDR2-667 SO-DIMM up to 2GB (LP-170G) 1 x 200-pin DDR2-667 SO-DIMM up to 4GB (LP-170H/A/C) Support Non-ECC, unbuffered memory only |
| Chipset | Intel® ICH8M |
| Real Time Clock | Chipset integrated RTC with onboard lithium battery |
| Watchdog Timer | Generates a system reset internal timer for 1min(sec) ~ 255min(sec) |
| Power Management | ACPI 1.0 compliant, supports power saving mode |
| Integrated Graphics | Intel® integrated extreme GMA 3150 (Graphic Media Accelerator) Technology |
| Video Memory | Up to 384MB shared with system memory |
| LVDS Interface | Chipset Integrated 18-bit single channel LVDS |
| Serial ATA Interface | 1 x SATAII interface with 300MB/s transfer rate |
| Solid State Disk | 1 x Compact Flash Type-II |
| Audio Interface | Intel® ICH8M integrated with Realtek ALC888 HD Codec |
| LAN Interface | 1 x Intel® 82583V Gigabit Ethernet controller |
| Expansion Interface | 1 x PCIe mini card socket |
| Internal I/O Port | 1 x Audio, 4 x USB2.0, 1 x LVDS, 1 x LCD Inverter, 1 x SATAII, 2 x RS232, 1 x LPC |
| External I/O Port | 1 x VGA, 1 x RJ45, 1 x PS2 |
| Power Requirement | 12V DC input |
| Board Dimension | 100mm x 72mm |
| Temperature | Operating within 0~60 centigradeStorage within -20~85 centigrade |
| LP-170C | Support Intel® Atom D525 processor with onboard VGA, 18-bit LVDS, Audio, Giga LAN, USB2.0, SATA, CF, PCIE mini card |
