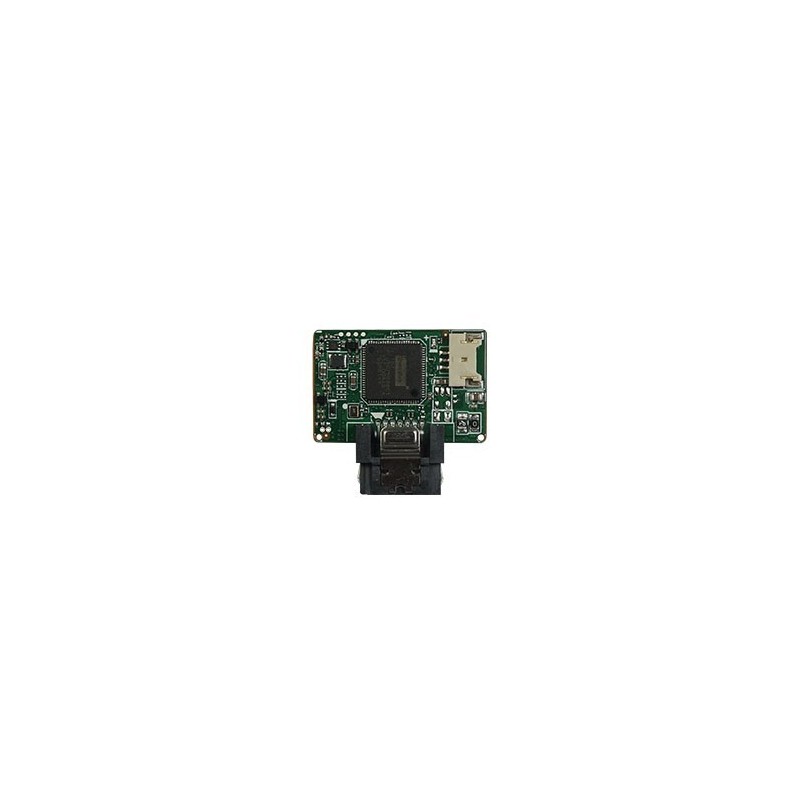

DOM SATA industriel 3IE3 V2 SL

DOMVSATA3IE3V2SL

Innodisk

DOM SATA 3IE3 V2 SL, iSLC, Vertical,
SATA III 6.0 Gb/s, Pin 8VCC & Power Cable

Envoyer à un ami

Le Disk On Module 3IE3 V2 SL, supportant le standard SATA III, est basé sur la technologie hybride SLC pour vous assurer un cycle de 20 000 écritures/lectures. Il peut être alimenté par un câble standard d'alimentation ou directement sur le pin 8 du port SATA.

- iSLC technology
- Built-in Pin 8 power supply
- Best boot drive solution for server and embedded system
- SATA 6Gb/s interface
- High IOPS to reduce boot up timing
- DRAM-less, 100% data integrity
- Innovative Firmware Algorithm
- Anti-vibration mechanical design
- Built in iData Guard

Model Name SATADOM™-SL 3IE3 V2
Interface SATA III 6.0 Gb/s
Type Vertical
Flash Type iSLC
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 240 / 160
Max. Power Consumption 0.8W (5V x 173mA )
Thermal Sensor Wide Temp. Only
H/W Write Protect N
Pin7 Power Y
Pin8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 30.0 x 28.4 x 7.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C
