DOM SATA industriel 3IE3 V2 SH

DOMHSATA3IE3V2SH

Innodisk

DOM SATA 3IE3 V2 SH,
iSLC,Horizontal,SATA III 6.0 Gb/s,
Pin 8VCC & Power Cable

Envoyer à un ami

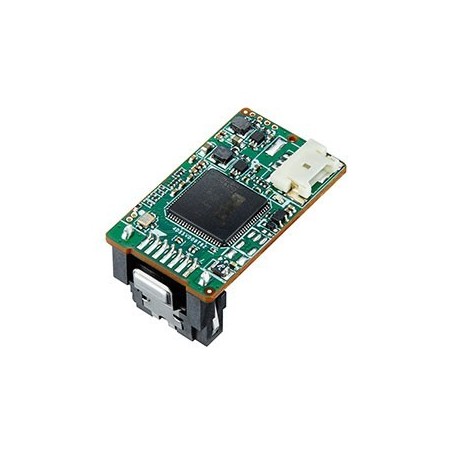

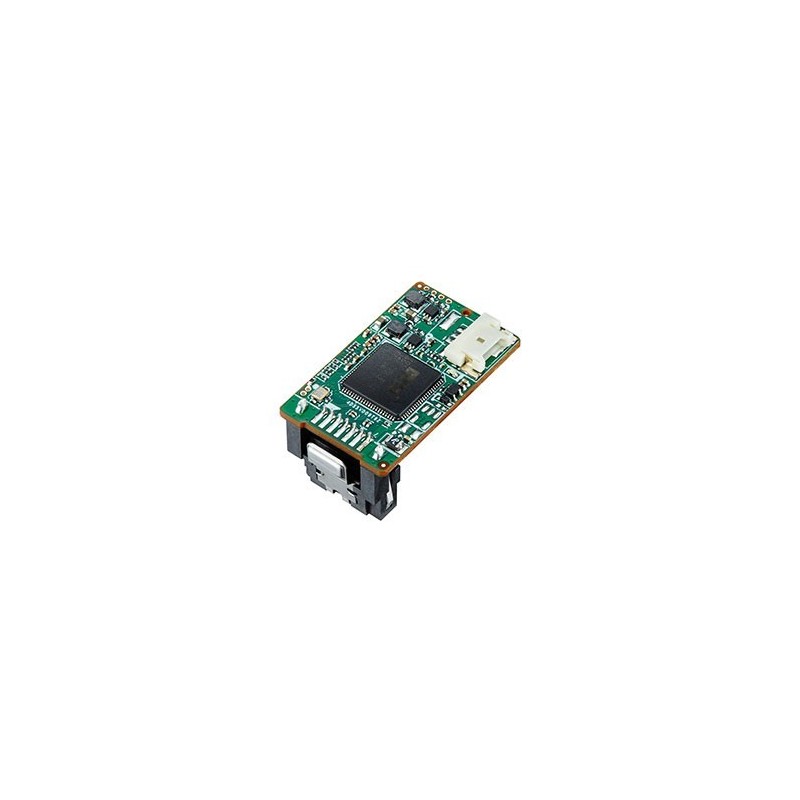

Le Disk On Module 3IE3 V2 SH, basé sur la technologie hybride iSLC garantissant un cycle de 20 000 écritures/lectures, supporte le standard SATA III. Il peut être alimenté directement sur le pin 8 du port SATA ou par un câble standard d'alimentation.

- iSLC technology
- Built-in Pin 8 power supply
- Best boot drive solution for server and embedded system
- SATA 6Gb/s interface
- High IOPS to reduce boot up timing
- DRAM-less, 100% data integrity
- Innovative Firmware Algorithm
- Anti-vibration mechanical design
- Built in iData Guard

Model Name SATADOM™-SH 3IE3 V2
Interface SATA III 6.0 Gb/s
Type Horizontal
Flash Type iSLC
Capacity 8GB~64GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 240/160
Max. Power Consumption 1.45 W (5V x 290mA )
Thermal Sensor Wide Temp. Only
H/W Write Protect N
Pin7 Power Y
Pin8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 18 x 30.3 x 15.15
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C
