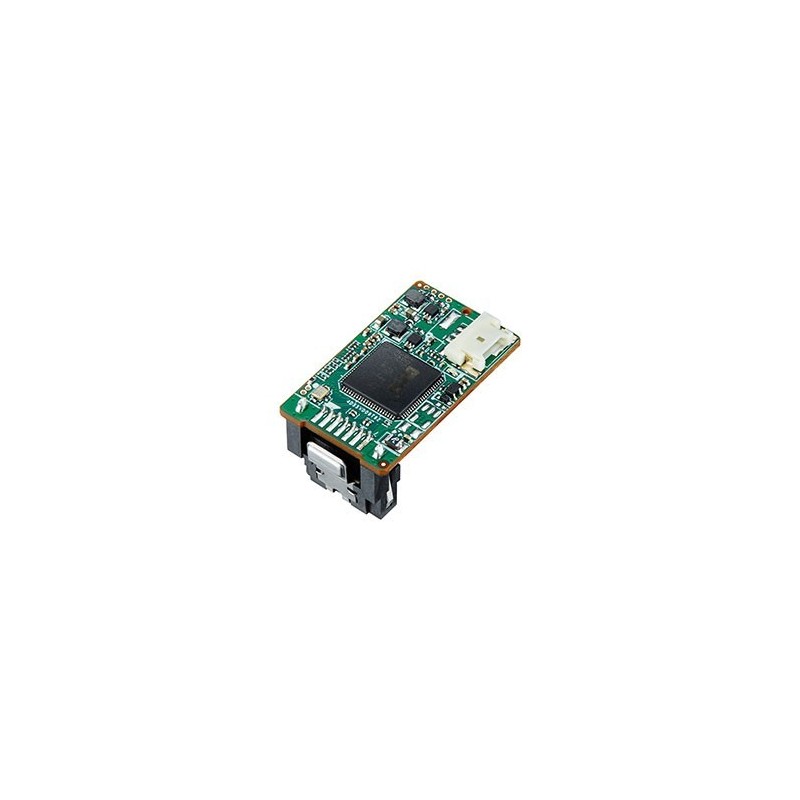

DOM SATA industriel 3ME3 V2 SH

DOMHSATA3ME3V2SH

Innodisk

DOM SATA 3ME3 V2 SH,
MLC,Horizontal,SATA III 6.0 Gb/s,
Pin 8VCC & Power Cable

Envoyer à un ami

Le Disk On Module industriel 3ME3 V2 SH, basé sur la technologie MLC et supportant le standard SATA III, peut être alimenté directement sur le pin 8 du port SATA ou par un câble standard d'alimentation.

- Built-in Pin 8 power supply
- Best boot drive solution for server and embedded system
- SATA 6Gb/s interface
- High IOPS to reduce boot up timing
- DRAM-less, 100% data integrity
- Innovative Firmware Algorithm
- Anti-vibration mechanical design
- Built in iData Guard

Model Name SATADOM™-SH 3ME3 V2
Interface SATA III 6.0 Gb/s
Type Horizontal
Flash Type MLC
Capacity 8GB~128GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 200 / 80
Max. Power Consumption 1.8W (5V x 370mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin7 Power Optional
Pin8 Power Y
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 30 x 28.4 x 7.4
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C
