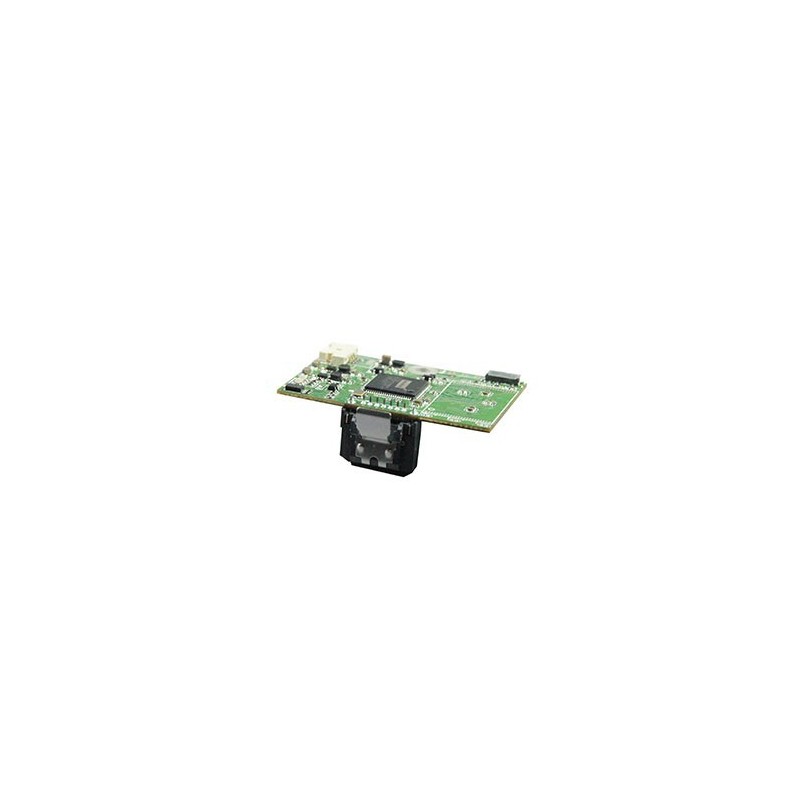

DOM industriel SATA 3SE MH

DOMHSATA3SEMH

Innodisk

DOM SATA 3SE MH,
SLC,Horizontal,SATA III 6.0 Gb/s

Envoyer à un ami

Le Disk On Module industriel 3SE MH supporte le standard SATA III et est basé sur la technologie SLC pour vous garantir un long cycle de vie (60 000 écritures/lectures).

- SATA 6Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
- Built-in Pin7 VCC

Model Name SATADOM™-MH 3SE
Interface SATA III 6.0 Gb/s
Type Horizontal
Flash Type SLC
Capacity 4GB~32GB
Max. Channels 2
Sequential R/W (MB/sec, max.) 260 / 130
Max. Power Consumption 1.8W (5V x 360mA )
Thermal Sensor Wide Temp. only
H/W Write Protect N
Pin7 Power Y
Pin8 Power N
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 40.0 x 30.0 x 9.0 mm
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C
