  • Micro SATA 3MG2-PWT

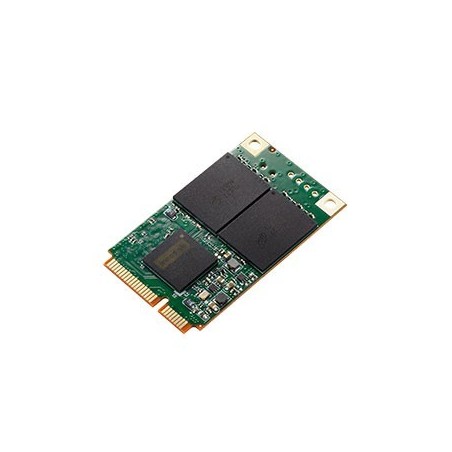

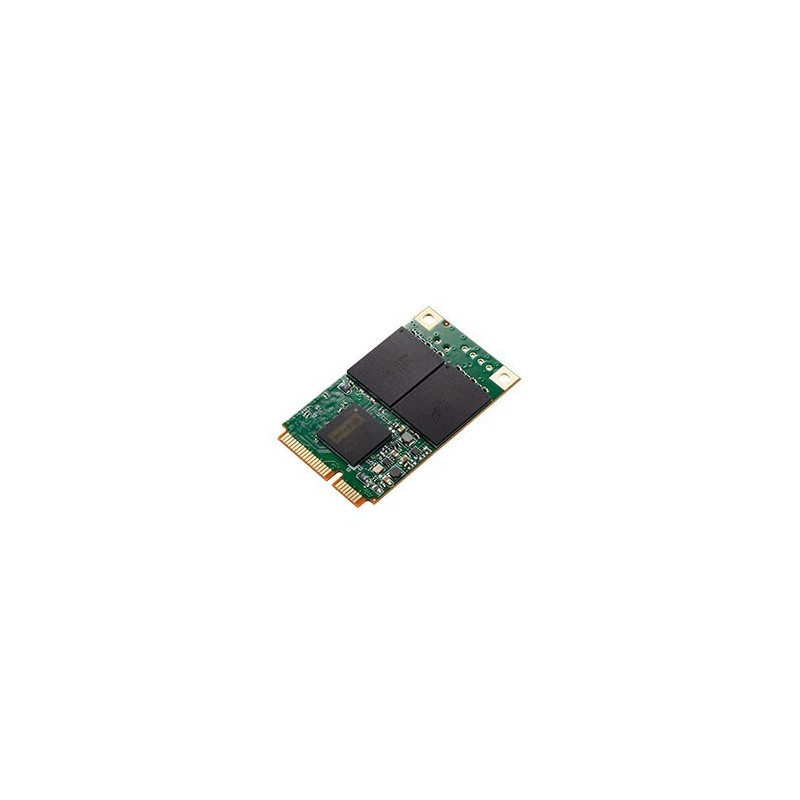

Micro SATA 3MG2-PWT

SSDMSATAMLC-3MG2-PWT

Innodisk

3MG2-P WT MICRO SATAIII, High IOPS, MLC, Industrial,
Max Read:520Mo/s, Max Write:450Mo/s, -40~+85°C

Envoyer à un ami

Doté d'une excellente vitesse de transfert de données, le Micro SATA 3MG2-P de technologie MLC ( cycle de 3 000 écritures/lectures) fonctionne à des températures allant de -40°C à +85°C pour satisfaire aux besoins de vos applications embarquées et industrielles.

- SATA 6.0 Gb/s interface
- JEDEC MO-300 standard dimension
- High IOPS by on-board DRAM design
- Intelligent error recovery system
- Ismart disk health monitoring
- iData Guard for abnormal power failure
- Zero mechanical interference
- DEVSLP supported

Model Name mSATA 3MG2-P
Interface SATA III 6.0 Gb/s
Type Standard
Flash Type MLC
Capacity 8GB~512GB
Max. Channels 4
Sequential R/W (MB/sec, max.) 520 / 355
Max. Power Consumption 2.8 W ( 3.3 V x 0.86 A )
Thermal Sensor Y
External DRAM Buffer Y
H/W Write Protect Optional
ATA Security Y
S.M.A.R.T. Y
Dimension (WxLxH/mm) 29.85 x 50.8 x 3.6
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Industrial Grade: -40°C ~ +85°C
