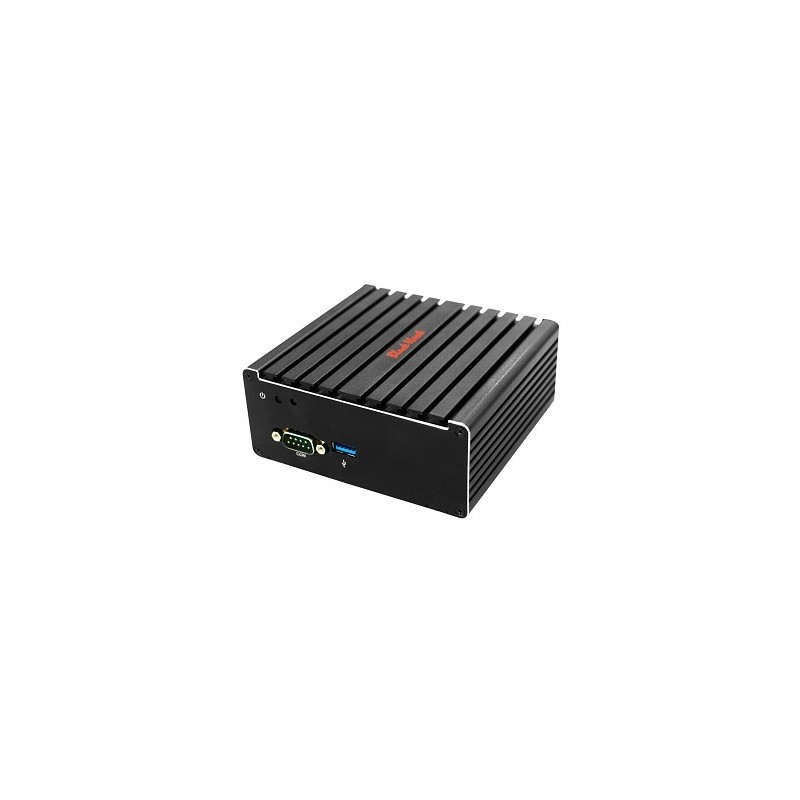

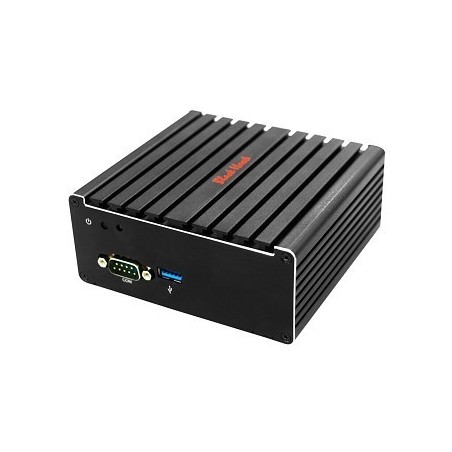

Mini PC fanless JBC310U91

BBJEJBC310U91-2930-B

Jetway

Barebone Fanless, INTEL Atom N2930, Quad Core
2xHDMI, 1xLan, 2xUSB2.0, 1xUSB3.0, 1xRs232, Audio
DDR3L Max 4Go, Half mPCIe, m-SATA, 9~24vDC, 116x110x49 mm

Envoyer à un ami

Micro PC ultra basse consommation et ultra compact, non ventilé

- Processeur INTEL® Bay Trail-M N2930 SoC 1.83GHz, Quad-Core, 7.5W
- Produit avec disponibilité étendue à 5 années
- Fanless (sans ventilateurs)
- Ultra compact : 116x110x49mm
- Alimentation par prise Jack avec voltage étendu de 9V à 24V DC
- 2 x HDMI & DDR3L
- ECO-design pour EuP/ErP
- Testé et vérifié avec les pré-versions de Windows 10

Part No  HBJC310U91-2930-B | HBJC310U91-2930-SHBJC310U91W-2930-B | HBJC310U91W-2930-S
Mot    herboard Specification
CPU Fanless INTEL® Bay Trail-M Celeron N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
Memory 1 * 204-pin DDR3L-1333 SO-DIMM Single Channel up to 4 GB (1.35V required)
VGA Intel® HD Graphics
LAN 1 x Intel® WG82574L Gigabit Ethernet
Audio
Storage 1 x full size mSATA Slot
Wireless / Mini-PCIE Slot1 x half size Mini-PCI Express SlotWireless 802.11 b/g/n + Bluetooth 4.0
Board Form Factor NUC Form Factor (101mm X 101mm)
Chassis Specification
Product size 116 * 110 * 49 mm
Material Lightweight aluminum alloy with extruded aluminum IO panel
Color Black and Sliver
HDD
Front I/O Port 1 * Power Button
1 * Power LED
1 * COM port
1 * USB 3.0
Rear I/O Port 2 * USB 2.0 ports
2 * HDMI
1 * RJ-45 port
1 * Audio line out with SPDIF out
1 * 9V ~ 24V DC-in jack
1 * SMA Connector for WiFi Antenna
1 * Kensington Lock Hole
Power Adapter : AC_90~240V / DC_12V_3A/36W
Environment Operating Temperature : 0 ~ 40°C with air flow
Storage Temperature : -20 ~ 80°C
Standard Accessory v 36W AC Adapter x1
v Power Cord x1
v Screw pack x1
v DVD Disk x1
v Manual x1
v WALL + VESA + DIN rail mounting kit (Black)
v Din Rail Clip
v WIFI antenna (with HBJC310U91W-2930 model)
Functional Digital Signage, Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK, HTPC
Certificate CE,FCC,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
