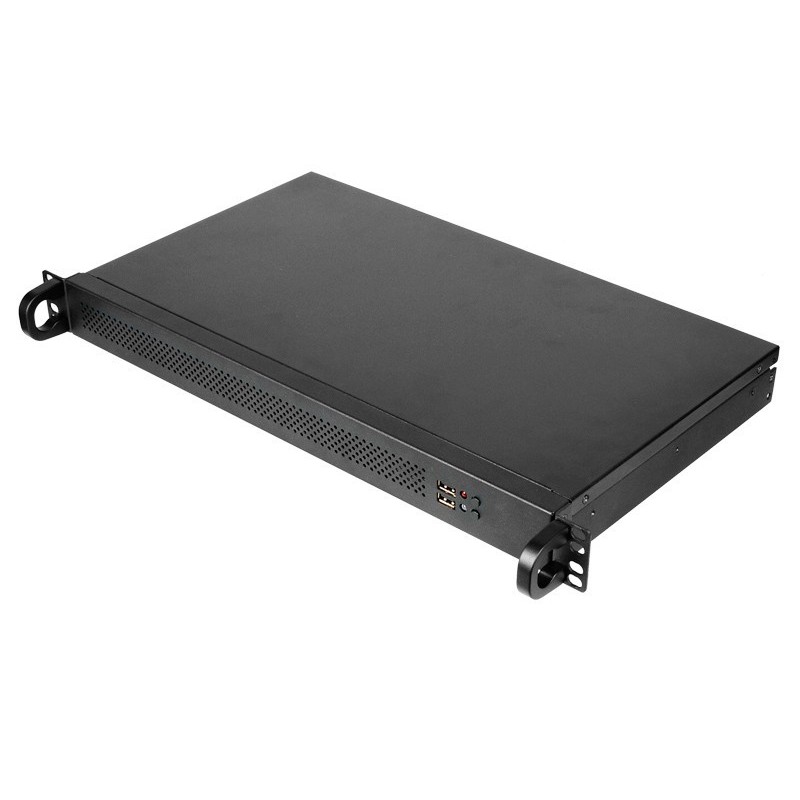

Rack 1U JBC150F9N-2930-BE
BBJEJBC150F9N-2930BE
Rack 1U en barebone, Intel Celeron N2930, 5xIntel Glan I211/82574L, 1*Com,
2xDDR3 LV Sod. Max 8GB, 2x2.5 SATA, 1xMPcie/mSATA Full-size ,
1xMPcie Full-size, 3xUSB2, VGA, HDMI, Alim 200W Flex,
3xVent 40*40*20mm, Op. Temp. 0~60°C, 43x25x44cm
Mini PC en rack 1Uavec 5 ports LAN pour applications réseau.
- Intel Celeron N2930 SoC Processor
- Embedded Long-life Series, Lifecycle through Q1'2019
- Supports DDR3L-1333 1.35V SODIMM up to 8GB Total
- Supports Jetway Daughter Board Gen2
- ECO-design for EuP/ErP
| Motherboard Specification | ||
| CPU | Intel® Celeron N2930 SoC, 1.83GHz – 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP | |
| Memory | 2 x 204-pin SODIMM DDR3L-1333 Single Channel up to 8 GB (1.35V required) | |
| Graphics | Intel HD Graphics, 313MHz - 854MHz | |
| LAN | 5 x Intel i211AT Gigabit Ethernet | |
| Audio | Realtek ALC662 HD Audio codec | |
| Storage | 2 x SATA2 3Gb/s Connectors 1 x Full-size mSATA slot (shares with 2nd SATA port) |
|
| Wireless / Mini-PCIE Slot | 1 * Mini-PCI Express Slot (Full-size) | |
| Expansion Slot | 1 x PCI Express x1 Slot | |
| USB | Embedded 1 * USB 3.0 & 7 * USB 2.0 | |
| MB Form Factor | Mini-ITX (170mm x 170mm) | |
| Chassis Specification | ||
| Form Factor | 1U Rackmount | |
| Dimensions | 430 (W) * 252 (D) * 44 (H) mm | |
| Storage | 1 * 3.5" HDD Drive Bay OR 2 * 2.5" HDD Drive Bay |
|
| Front I/O Port | 1 * Power Button 1 * Reset Button 1 * Power LED 1 * HDD LED 2 * USB 2.0 ports |
|
| Rear I/O Port | 1 * Power Switch 1 * Reset Switch 1 * Power LED 1 * HDD LED 1 * PS2 Keyboard 1 * PS2 Mouse 1 * VGA Port 1 * RS232 Serial Port 3 * USB 2.0 ports 1 * RJ45 Gigabit LAN 1 * HDMI (up to 1920 x 1080) 1 * USB 3.0 ports 1 * Line-out Jack |
|
| 1U Power Supply | 1U-200W / Support PFC / 150(L) * 81.5(W) * 40.5(H) mm (FLEX) | |
| Cooling Fans | 4020 FAN * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM | |
| Expansion Slots | 1 * PCI-E x1 Slot | |
| Environment | Operating Temperature : 0 ~ 40°C Storage Temperature : -20 ~ 70°C |
|
| Standard Accessory | √ Power Cord x1 √ DVD Disk x1 √ Quick Installation Guide x1 √ Manual x1 √ Screw Pack x1 |
|
| Certificate | CE,FCC,ErP for Rackmount Barebone CE,FCC,UL,CCC,RoHS,CISPR 22 CLASS B,UL60950-1,TUV EN 60950-1,CB for Power Supply |
|
Rack 1U en barebone, Intel Celeron N2930, 5xIntel Glan I211/82574L, 1*Com,
2xDDR3 LV Sod. Max 8GB, 2x2.5 SATA, 1xMPcie/mSATA Full-size ,
1xMPcie Full-size, 3xUSB2, VGA, HDMI, Alim 200W Flex,
3xVent 40*40*20mm, Op. Temp. 0~60°C, 43x25x44cm
