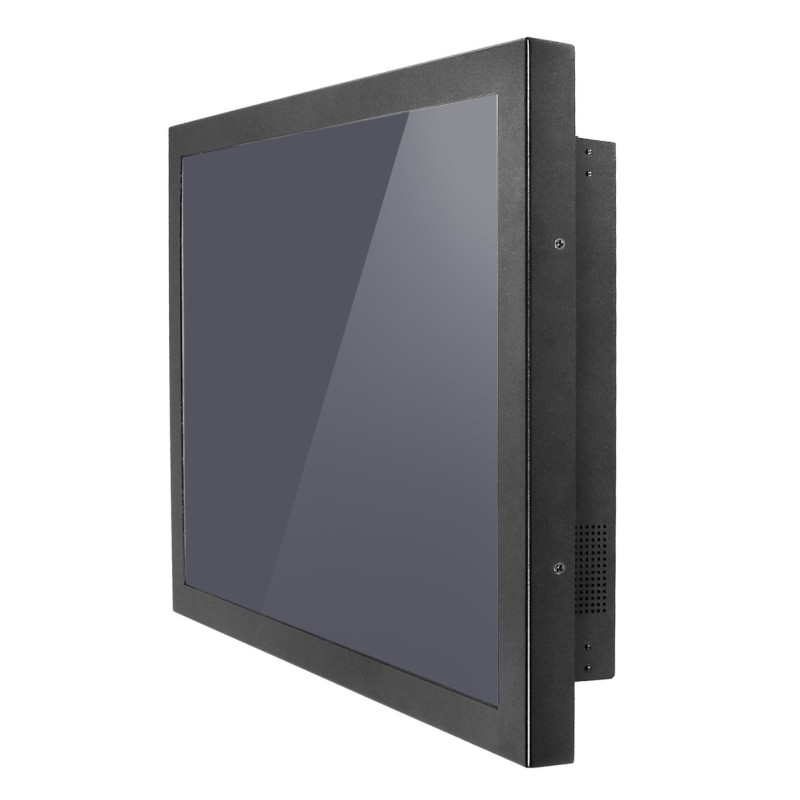

Panel PC tactile 17" HPC170BR-2930-4G

PPCT170BR-2930-4G

Jetway

Slim Panel PC Tactile 17", 1280x1024, 350cd/m2,Tact. Resistif 5 fils
Celeron N2930, 4GB Ram, VGA, 4xUSb, 6xCom,2xGLan, mSATA
2.5 SATA, WiFi, 9~24VDC sur Term. Block., 407*340*60.0mm, IP65
Envoyer à un ami
Panel PC industriel 17" doté d'un châssis en acier et d'une face avant en aluminium protégé contre la poussière et les projections d'eau (IP65).

- INTEL® BayTrail--M N2930 SOC Chip
- Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
- Onboard SAMSUNG 4G/1333MHz DDR3L Memory
- Support DirectX 11 3D Graphics Acceleration
- Support 1*Serial ATAII(3Gb/s) Devices
- Support Dual INTEL® Gigabit LAN
- Support CRT Output
- Equipped with 802.11 b/g/n WIFI card & External Antenna
- Support 6* COM ports（COM2/COM3 Support RS422/485)
- Support 2.5” SATA HDD
- Support 1*M-SATA Socket
- Support 1*Mini PCI-E Socket
- Support 3* USB2.0 Ports
- Support 1* USB3.0 Port
- Support 3G SIM Card
- Support slick design
- VESA mount(100mm X100mm &75mm x 75mm)

Panel

Viewable Size Image 17.0 inch With LED Backlight
Active Area 337.920(H) x 270.336(V)
Resolution 1280 x 1024 @60Hz
Display Color 16.7M
Pixel Pitch 0.264 x 0.264 mm
Aspect Ratio 4:3
Contrast Ratio 1000:1
Max Brightness 350 cd/m²
Viewing Angle(H/V) H170/V160
Response Time 3.5ms
Temperature Range 0 ～ +50℃(Operating)

Touch

Active Range 337.00 x 269.50mm ±0.2mm
Temperature Range -10 ~ +60℃(Operating)
Transparency 80 ±3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes

Case

Case Material Iron
Color Black
Coating Requirement Spray Paint
Protection grade（IP) IP65
Speaker 2-CH(3W)
Bracket 6 (Top:2pcs、Side:4pcs, Optional)
Installation Type Open Frame / Wall Hanging（Optional）
Cooling Mode Fan less Fully sealed design

System Specification

Processor INTEL® BayTrail-M N2930 1.83GHz/QC
System Chipset INTEL® BayTrail-M N2930 (SOC)
System Memory 4G/1333MHz DDR3L SAMSUNG DRAM
BIOS 64MB SPI Flash ROM
Ethernet 2*INTEL® I211AT Gigabit LAN
Audio Realtek®  ALC887 HD Audio
Storage 1* Serial ATA2 3Gb/s connector 1* M-SATA connector
WIFI Module N/A(Option)
Optical Device N/A
Expansion PCI-E mini card for WLAN
Display Output CRT
I.O Port 1*USB3.0、3*USB2.0、4*RS232、 2*RS232/422/485、1*Line-out
Power Adapter DC-IN (9~24V,Euro terminal block)
OS Support Windows 7/8/8.1
Temperature Operating：0 ~ +50℃
Humidity 20%~90% (non condensing)
Shock Operating：15G，11ms duration
Vibration Operating：5~500Hz/1 Grms
Net Weight (kg)
Dimension 407.0mm*340.0mm*60.0mm
Certification FCC   CE   IP65
Other Support Non lead I.O interface output

Other Information

Special Features Metal design, compact、slick
Other Optional wall hanging telescopic bracket, etc., can also be used as the embedded security

Accessory

Power cord 1*Power cord
Manual 2*Manual
CD 1*CD
Other 2* WI-FI antenna
