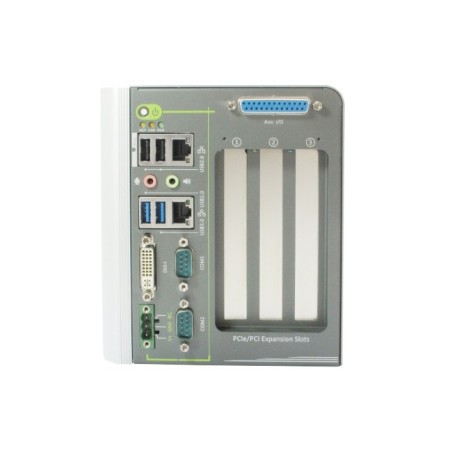

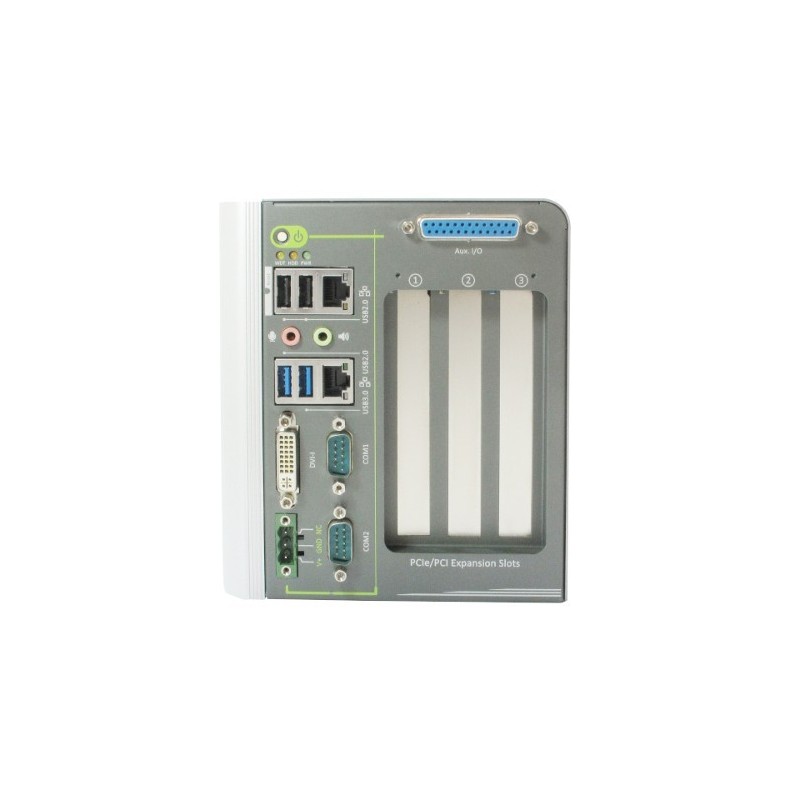

PC industriel fanless durci Nuvo-2430

BBNENUVO-2430

Neousys

PC Industriel durci Fanless,Intel Celeron J1900,
3*PCI slot, 2*INTEL GbE, 2*RS-232/422/485, 2*RS-232,
1*DVI, 2*SATA 2.5 HDD/SSD, 8DIO Isolated,
-20 - 70°C Op. Temp. ( w/o IO cards), 8~25Vdc, w/o PSU

Envoyer à un ami

Destiné à être utilisé dans les environnements rudes, le Nuvo-2430 de NEOUSYS supporte des températures allant de moins 25°C à plus 70°C et résiste à des niveaux de vibrations et de chocs de 50Grms. Equipé du processeur Intel® Celeron® Bay Trail J1900 quad-core, ce PC shoebox dispose de 3 slots PCI.

- Intel® Celeron® Bay Trail J1900 quad-core processor
- 3x PCI slots
- Rugged, -25°C to 70°C fanless operation
- Dual independent display via DVI-I connector
- 2x SATA ports for 2.5" HDD/SSD
- 2x RS-232/422/485 + 2x RS-232
- Isolated 8-ch DI and 8-ch DO
- 8 to 25 VDC wide-range DC input

System Core
Processor Intel® Celeron® Bay Trail J1900 Quad-core Processor (2.42GHz, 2M Cache)
Graphics Integrated Intel® HD Graphics
Memory 1x 204-pin SO-DIMM Socket up to 8GB DDR3L-1333MHz SDRAM
Front Panel I/O Interface
Ethernet 2x Gigabit Ethernet by Intel® I210 Ethernet Controller
Video Port 1x DVI-I connector for VGA and DVI dual independent display outputs
Serial Port 2x BIOS-configurable RS-232/422/485 (COM1 & COM2)
USB 1x USB 3.0 port and 3x USB 2.0 ports
Audio Port 1x speaker-out and 1x mic-in
Power Input 1x 3-pin pluggable terminal block for DC input
Internal I/O Interface
Serial Port 2x RS-232 ports (COM3 & COM4)
Parallel Port 1x Parallel Port via 2x13-pin box-header
Isolated DIO Optional 8-CH DI and 8-CH DO (Polling Mode Only)
Remote Control & Status Output 1x 3-pin wafer connector for remote on/off control
1x 2x6-pin pin-header connector for status output
Storage Interface
SATA Port 2x internal SATA ports for 2.5" HDD/SSD installation
Expansion Bus
PCI 3x 33 MHz/32-bit PCI slots
Power Supply
DC Input 8~25V DC input
Mechanical
Dimension 139mm (W) x 160mm (H) x 225mm (D)
Weight 2.2 Kg (including one 2.5" HDD and DDR3L SO-DIMM)
Mounting Wall-mount (standard) or DIN-rail mount (optional)
Environmental
Operating Temperature -25°C ~ 70°C, 100% CPU loading */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024


*he 100% CPU loading is applied using Passmark® BurnInTest™ v7.0. For detail testing criteria, please contact Neousys Technology. **For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
