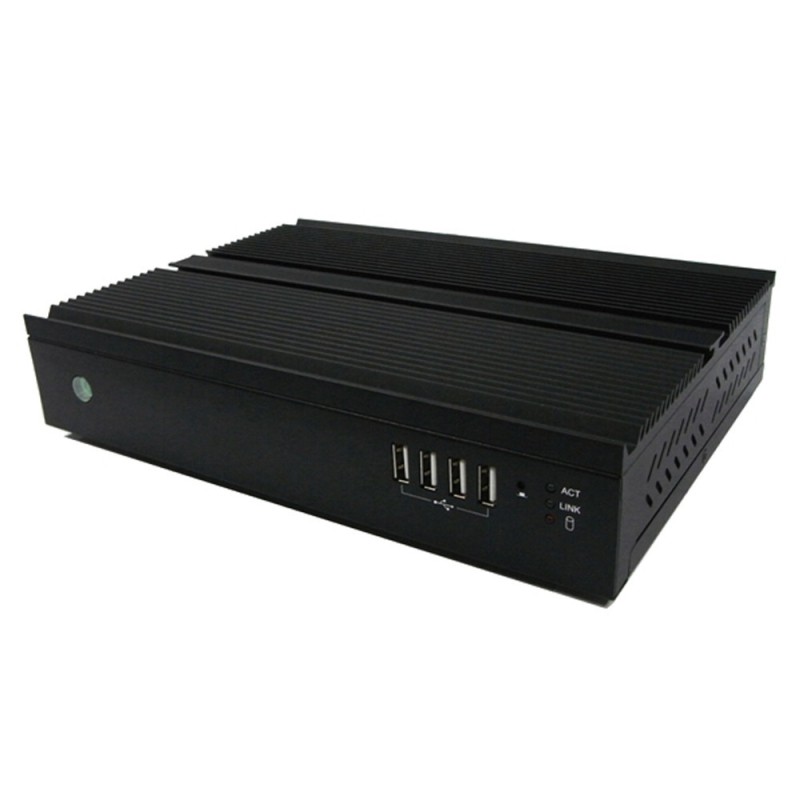

Mini PC fanless FX5651
BBFAFX5651
Embedded System w/Atom D425
(1.8GHz, 512KB L2, 800MHz FSB, 10W), 2GB DDR3,
8S, 6USB, GbE, VGA, Audio, CF+Mini-PCIe Socket,
2.5" SATA HDD Space
(1.8GHz, 512KB L2, 800MHz FSB, 10W), 2GB DDR3,
8S, 6USB, GbE, VGA, Audio, CF+Mini-PCIe Socket,
2.5" SATA HDD Space
Doté du processeur Intel Atom D425, le mini PC industriel FX5651 de FabiaTech est un système embarqué sans ventilateur (fanless), basse consommation et pourvu de 2*VGA, 6*USB, 1*LAN et 1*mini PCIe. C'est une solution convenant parfaitement aux applications POS (points de vente), kiosques interactifs, communications, surveillance réseau ou encore contrôle des mouvements.
| CPU Board | Atom D425 + ICH8M |
| Processor | Atom D425 1.8GHz |
| DRAM | 2GB DDR3 |
| DRAM Socket | 204-Pin SoDIMM *1 (DDR3, 2GB Max) |
| I/O Connector | |
| KB/Mouse | - |
| Serial | RS232 *4、RS232/485 *4 |
| Parallel | - |
| USB | 6 (2.0) |
| LAN | 1 (Giga LAN) |
| Display | VGA*2 |
| Dual Display | Yes |
| Audio | Yes |
| GPIO | - |
| BUS I/F | PCIe Mini-Card Slot *1 |
| Storage Bay | |
| CF / CFast Socket | Yes |
| HDD Space | 2.5" *1 (SATA) |
| Power Reguired | |
| Input Voltage | DC 12~24V |
| Rated Current | 37VA Max |
| Operation System | Windows XP / XPe / 7, and Linux |
| Operation Temperature | 0°C to 50°C (32℉ to 122℉) |
| Compliances | CE / FCC / RoHS |
| Dimension (W x D x H) | 250 x 180 x 50 mm |
